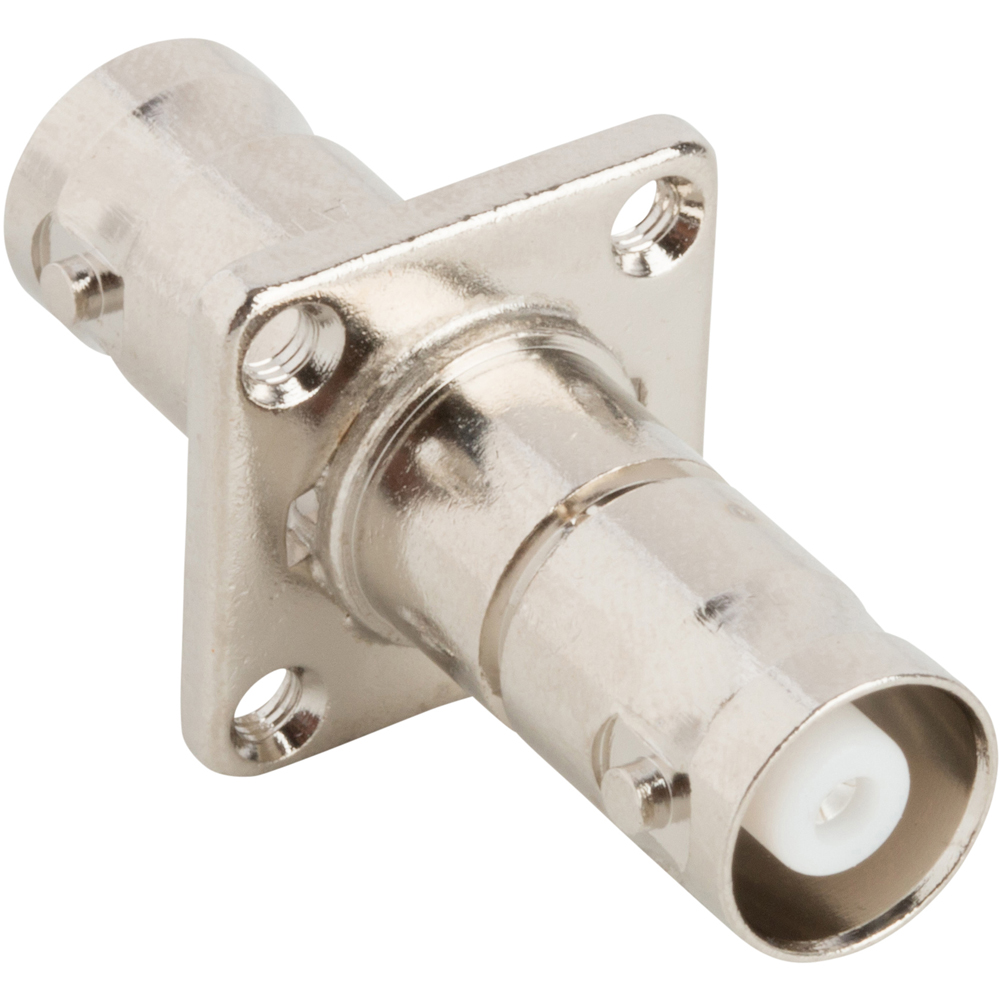

MHV Jack to MHV Jack Adapter Non-Constant Impedance Straight 4-Hole Flange
MHV to MHV Adapters
000-12650
$198.61
MHV Jack to MHV Jack Adapter Non-Constant Impedance Straight 4-Hole Flange
| Weight | 0.022226 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Nickel |
| Body Material | Brass |
| Impedance (Ohms) | Non-Constant |
| Insulator Material | PTFE |
| Panel Mounting Feature | 4-Hole Flange |
| Operating Level | Commercial |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 0.5 |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Adapter Side 1 Series | MHV |
| Adapter Side 1 Style | Jack |
| Adapter Side 2 Series | MHV |
| Adapter Side 2 Style | Jack |
| Contact Finish | Silver |
| Contact Material | Beryllium Copper |
