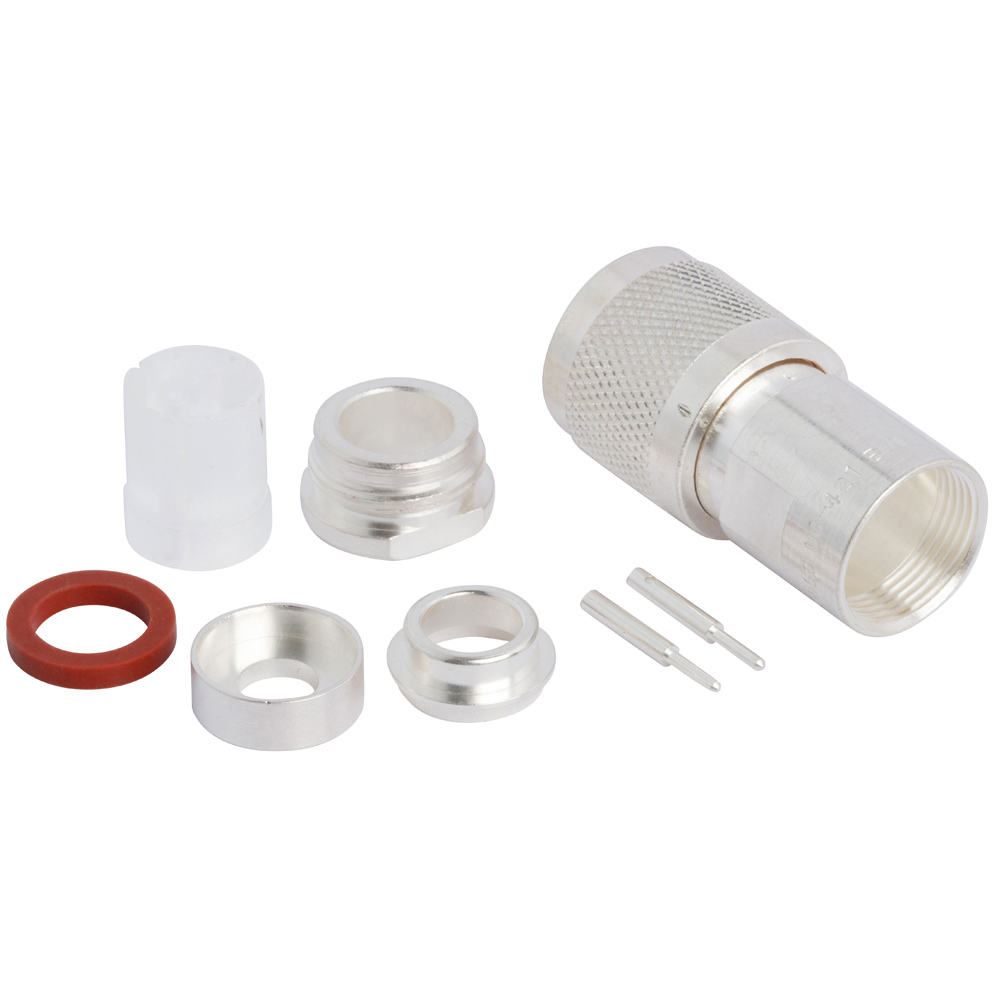

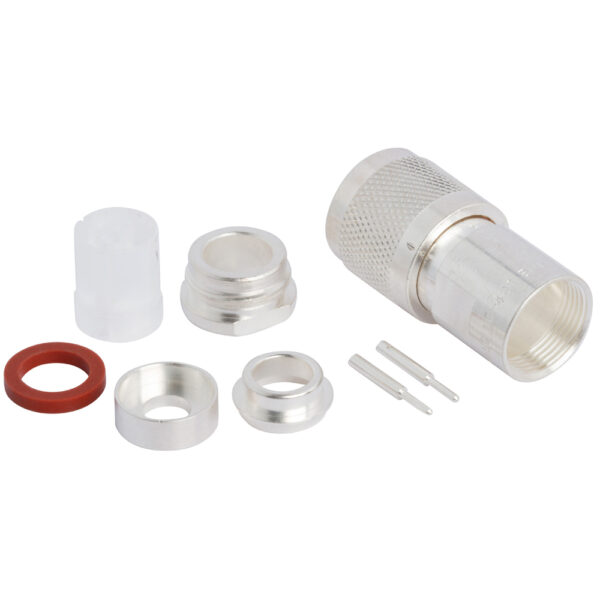

UG-421B/U Twinax Straight Clamp Plug RG-22 Non-Constant Impedance
| Weight | 0.031751 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Silver |
| Body Material | Brass |
| Cable Group | Ungrouped |
| Cable Type | RG-22 |
| Impedance (Ohms) | Non-Constant |
| Insulator Material | PTFE |
| IP Rating | Not Rated |
| Gender | Plug |
| Panel Mounting Feature | Not Applicable |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 0.2 |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Thread Direction | Standard |
| Contact Finish | Silver |
| Contact Material | Brass |
| Contact Termination | Solder |
| Coupling Mechanism | Threaded |
| Mating Cycles (Min) | 500 |
| Termination Style | Cable – Clamp |
