000-36775

$5.61

BNC Straight Crimp Plug RG-58 RG-141 Times LMR-195 50 Ohm

Quantity	100 - 249	250 - 499	500 - 999	1000 - 2499	2500 - 4999	5000
Price	$5.61	$5.50	$4.74	$4.32	$3.79	$3.71

Summary
000-36775	$5.61
1x	$5.61

SKU: 000-36775 Category: BNC Connectors

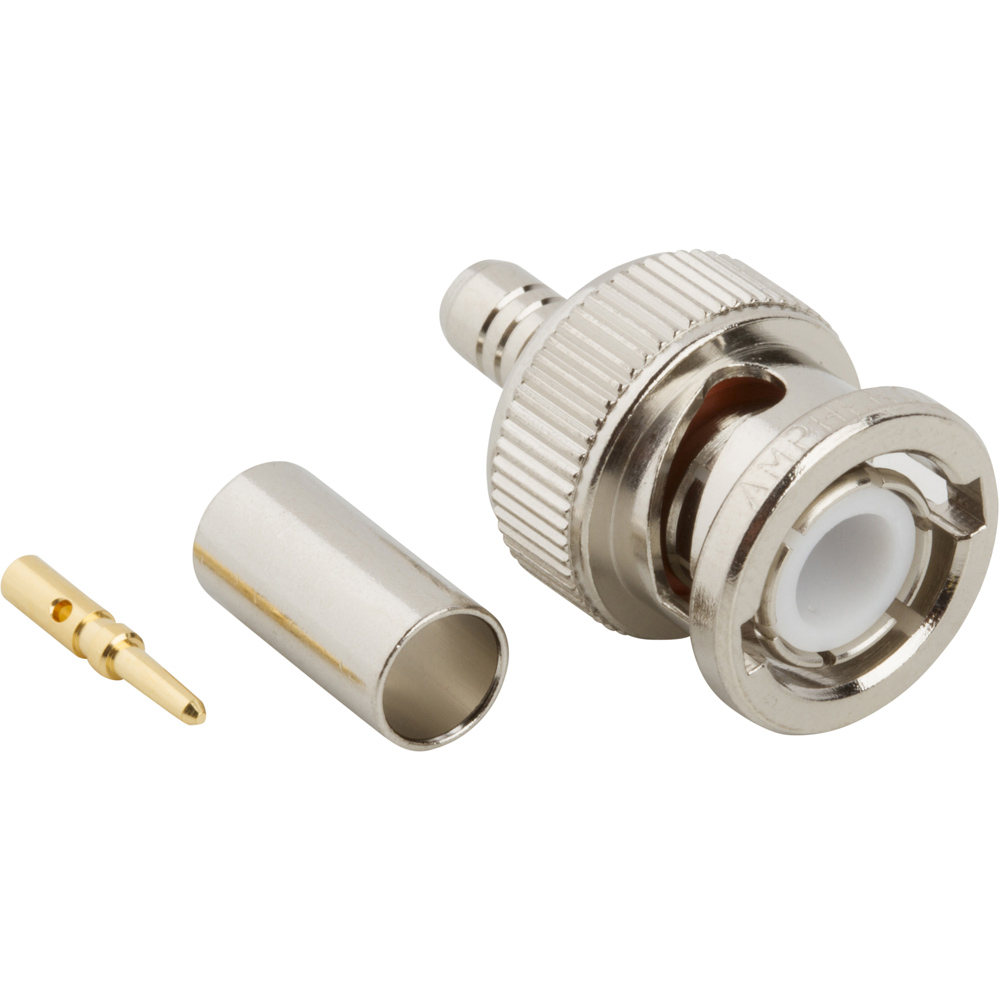

RF Connector BNC Straight Crimp Plug RG-58 RG-141 Times LMR-195 50 Ohm

Weight	0.013607 kg
Manufacturer	Amphenol RF
Body Finish	Nickel
Body Material	Brass
Cable Group	C
Cable Type	Belden 7806A, Belden 8219, Belden 8240, Belden 8259, Belden 8262, Belden 9201, Belden 9203, Belden 9310, Belden 9311, RG-141, RG-58, Times LMR-195, Times LMR-200-LLPL
Impedance (Ohms)	50
Insulator Material	PTFE
IP Rating	Not Rated
Gender	Plug
Panel Mounting Feature	Not Applicable
Isolated	No
Low PIM	No
Frequency (Max GHz)	4
Temp (Max Degrees Celsius)	165
Temp (Min Degrees Celsius)	-65
Non Magnetic	No
Contact Finish	Gold
Contact Material	Brass
Orientation	Straight
Coupling Mechanism	Bayonet
Mating Cycles (Min)	500
Termination Style	Cable – Crimp
Assembly Tool	47-10070
