Name: 000-36800
SKU: 000-36800
Price: 21.04 USD
Availability: InStock

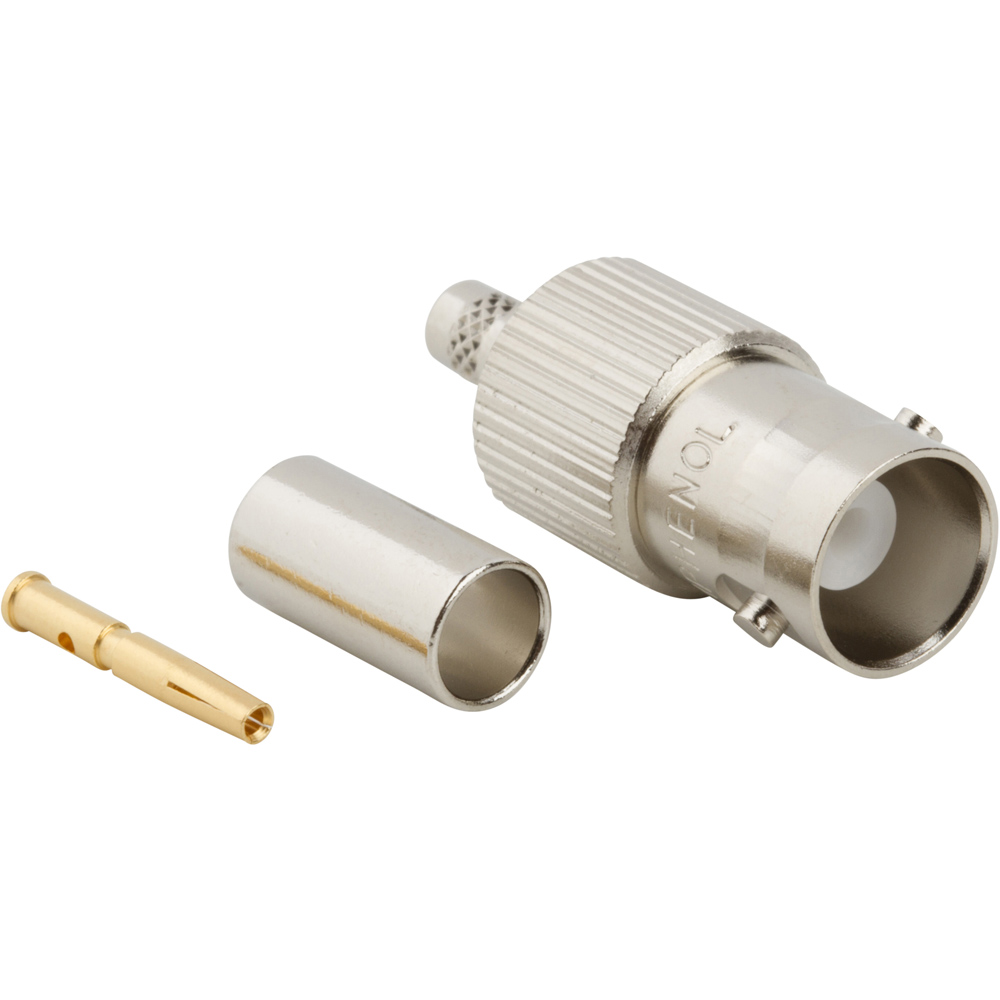

RF Connector BNC Straight Crimp Jack RG-58 RG-141 Times LMR-195 50 Ohm

Weight	0.013154 kg
Manufacturer	Amphenol RF
Body Finish	Nickel
Body Material	Brass
Cable Group	C
Cable Type	Belden 7806A, Belden 8219, Belden 8240, Belden 8259, Belden 8262, Belden 9201, Belden 9203, Belden 9310, Belden 9311, RG-141, RG-58, Times LMR-195, Times LMR-200-LLPL
Impedance (Ohms)	50
Insulator Material	PTFE
IP Rating	Not Rated
Gender	Jack
Panel Mounting Feature	Not Applicable
Operating Level	Commercial
Isolated	No
Low PIM	No
Frequency (Max GHz)	4
Temp (Max Degrees Celsius)	85
Temp (Min Degrees Celsius)	-40
Non Magnetic	No
Contact Finish	Gold
Contact Material	Phosphor Bronze
Contact Termination	Crimp
Coupling Mechanism	Bayonet
Mating Cycles (Min)	500
Termination Style	Cable – Crimp
Assembly Tool	CTL-3

Reviews

There are no reviews yet.

Be the first to review “000-36800”

Quantity	100 - 249	250 - 499	500
Price	$21.04	$20.69	$19.71
