000-4500

$22.32

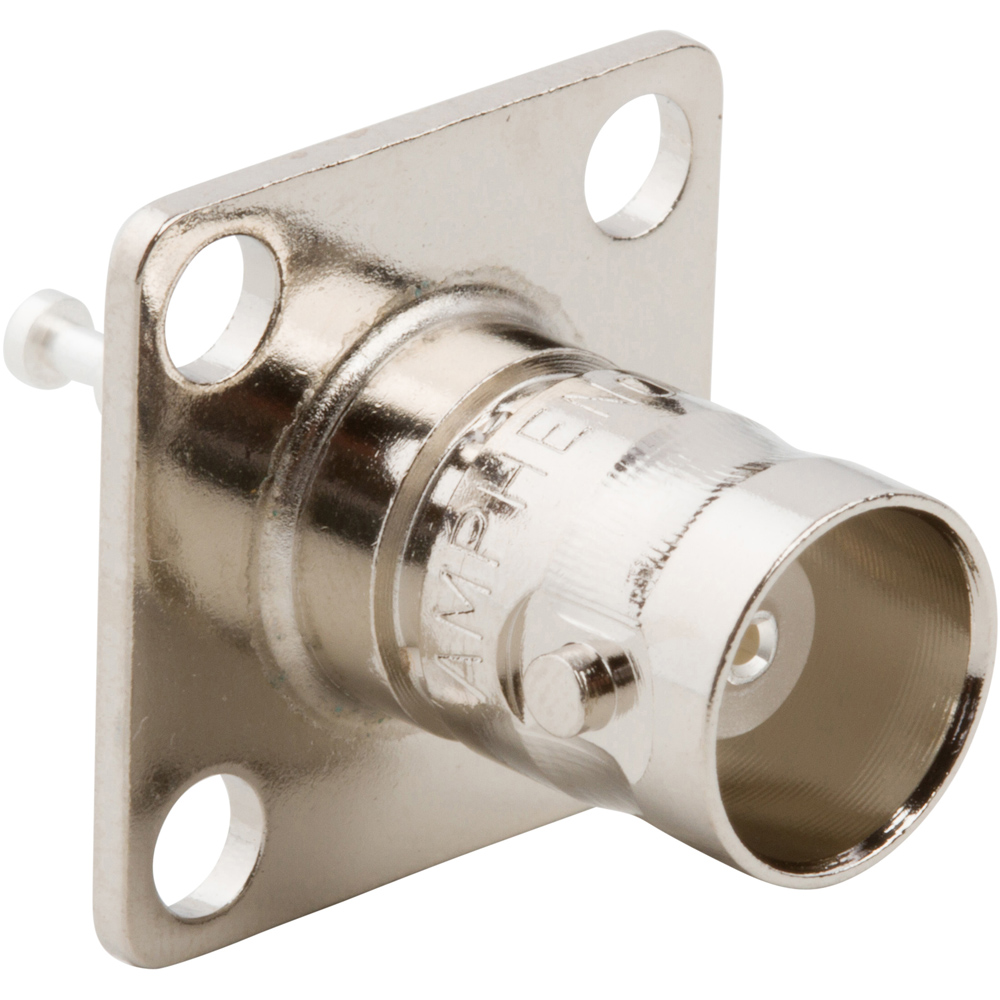

UG-185/U BNC Straight Receptacle Jack Solder Cup 4-Hole Flange 50 Ohm

Quantity 1 - 9 10 - 24 25 - 49 50 - 99 100 - 249 250 - 499 500 - 999 1000
Price $22.32 $21.43 $20.47 $19.23 $18.75 $16.89 $16.40 $15.05
Summary
000-4500$22.32
$22.32
SKU: 000-4500 Category:

UG-185/U BNC Straight Receptacle Jack Solder Cup 4-Hole Flange 50 Ohm

Weight 0.013154 kg
Manufacturer

Amphenol RF

Body Finish

Nickel

Body Material

Brass

Cable Group

Not Applicable

Cable Type

Not Applicable

Impedance (Ohms)

50

Insulator Material

Copolymer of Styrene

IP Rating

Not Rated

Gender

Jack

Panel Mounting Feature

4-Hole Flange

Operating Level

Commercial

Isolated

No

Low PIM

No

Frequency (Max GHz)

4

Temp (Max Degrees Celsius)

85

Temp (Min Degrees Celsius)

-55

Non Magnetic

No

Contact Finish

Silver

Contact Material

Beryllium Copper

Contact Termination

Solder

Coupling Mechanism

Bayonet

Mating Cycles (Min)

500

Termination Style

Solder Cup

Extended Dielectric Length

0.124 Inches (3.15 mm)
