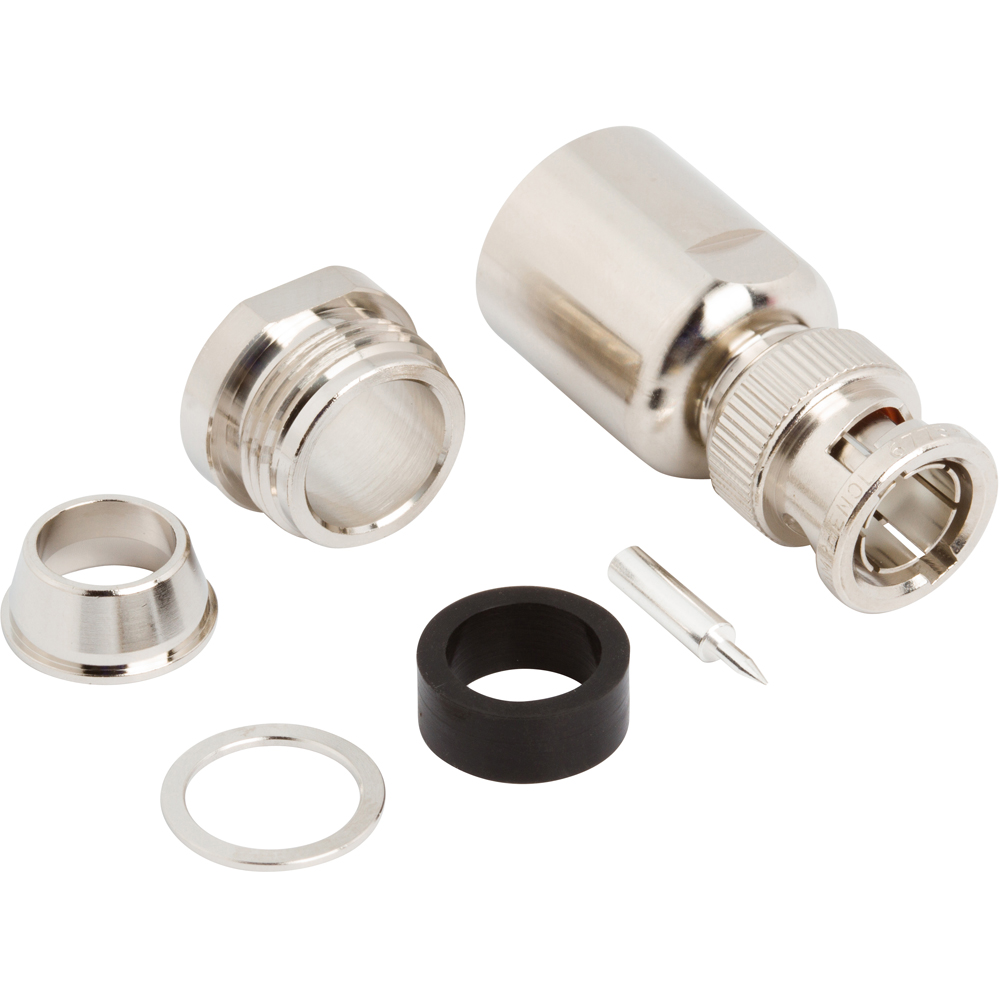

RF Connector BNC Straight Clamp Plug RG-8 RG-213 RG-225 75 Ohm
| Manufacturer | Amphenol RF |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | E |
| Cable Type | Belden 7733A, Belden 8242, Belden 8267, Belden 8268, Belden 89880, Belden 9251, Belden 9880, RG-213, RG-225, RG-8, Times AA-4478 |
| Impedance (Ohms) | 75 |
| Insulator Material | PTFE |
| IP Rating | Not Rated |
| Gender | Plug |
| Panel Mounting Feature | Not Applicable |
| Operating Level | Commercial |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 4 |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Contact Finish | Silver |
| Contact Material | Brass |
| Contact Termination | Solder |
| Coupling Mechanism | Bayonet |
| Mating Cycles (Min) | 500 |
| Termination Style | Cable – Clamp |
