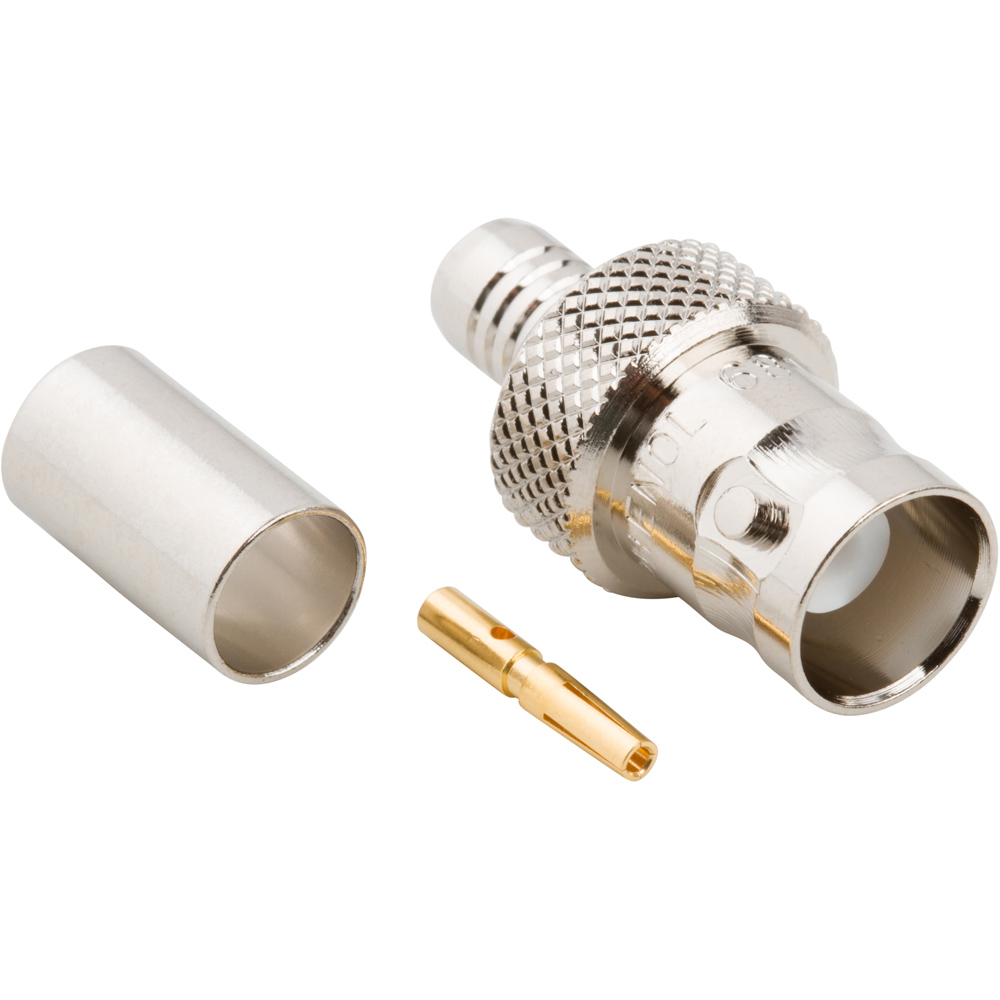

RF Connector BNC Straight Crimp Jack RG-59 RG-62 50 Ohm
| Weight | 0.013154 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | D |
| Cable Type | Belden 8221, Belden 8241, Belden 9169, Belden 9204, Belden 9228, Canare LV-61S, RG-59, RG-62 |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| IP Rating | Not Rated |
| Gender | Jack |
| Panel Mounting Feature | Not Applicable |
| Operating Level | Commercial |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 4 |
| Temp (Max Degrees Celsius) | 85 |
| Temp (Min Degrees Celsius) | -40 |
| Non Magnetic | No |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Contact Termination | Crimp |
| Coupling Mechanism | Bayonet |
| Mating Cycles (Min) | 500 |
| Termination Style | Cable – Crimp |
| Assembly Tool | CTL-8 |
