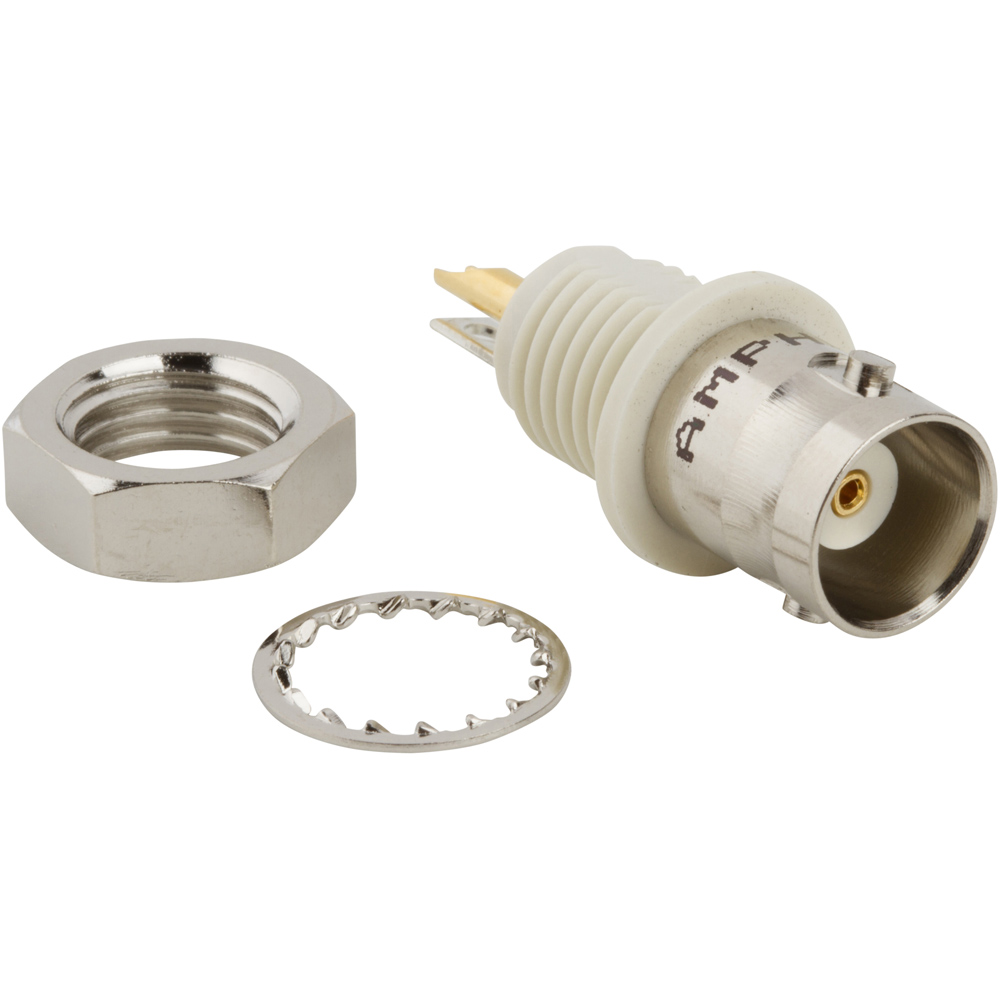

RF Connector BNC Straight Receptacle Jack Solder Cup Bulkhead Front Mount 50 Ohm Isolated
BNC Connectors
031-10-RFXG1
$2.53
BNC Straight Receptacle Jack Solder Cup Bulkhead Front Mount 50 Ohm Isolated
| Manufacturer | Amphenol RF |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | Not Applicable |
| Cable Type | Not Applicable |
| Impedance (Ohms) | 50 |
| Insulator Material | Nylon |
| IP Rating | Not Rated |
| Gender | Jack |
| Panel Mounting Feature | Bulkhead – Front Mount |
| Operating Level | Commercial |
| Isolated | Yes |
| Low PIM | No |
| Frequency (Max GHz) | 1 |
| Temp (Max Degrees Celsius) | 85 |
| Temp (Min Degrees Celsius) | -40 |
| Non Magnetic | No |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Contact Termination | Solder |
| Coupling Mechanism | Bayonet |
| Mating Cycles (Min) | 500 |
| Termination Style | Solder Cup |
| Extended Dielectric Length | 0.760 Inches (19.30 mm) |
