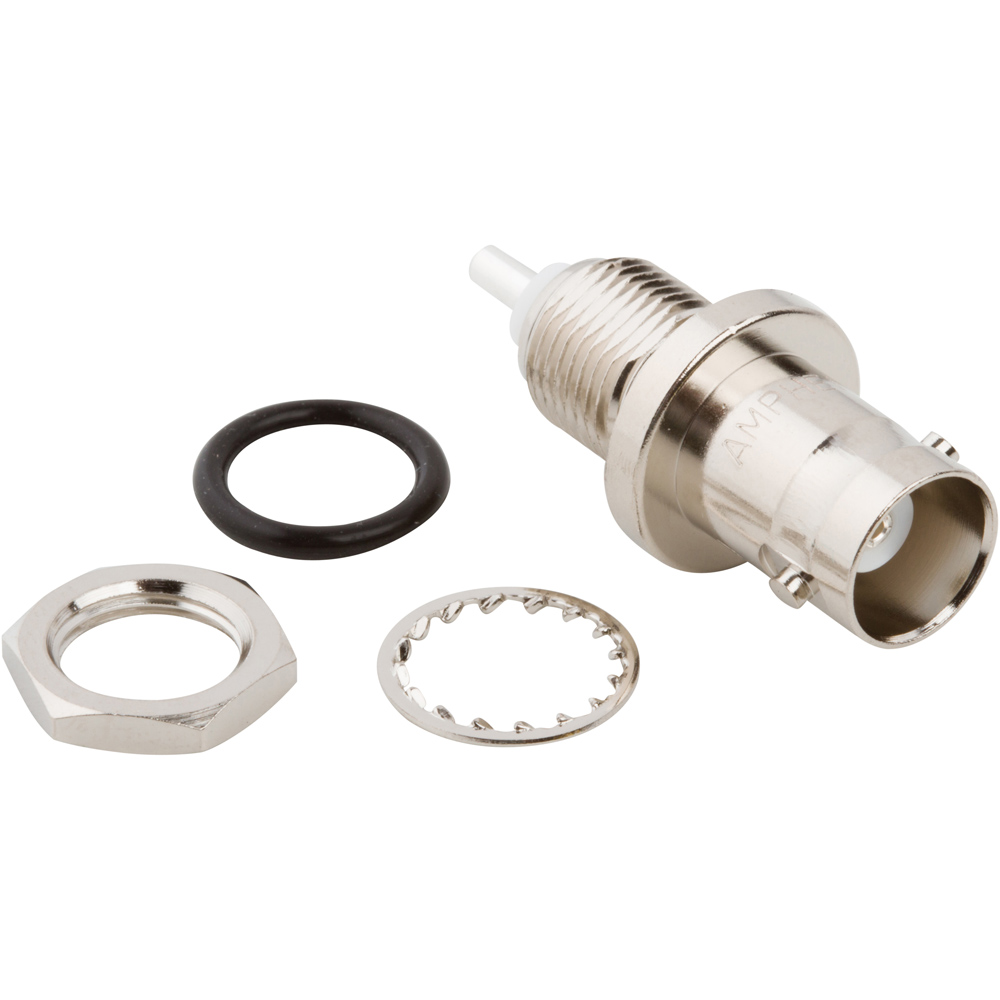

UG-657/U BNC Straight Receptacle Jack Solder Cup Bulkhead Front Mount 50 Ohm Isolated
BNC Connectors
031-102
$6.83
UG-657/U BNC Straight Receptacle Jack Solder Cup Bulkhead Front Mount 50 Ohm Isolated
| Weight | 0.014061 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | Not Applicable |
| Cable Type | Not Applicable |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| IP Rating | Not Rated |
| Gender | Jack |
| Panel Mounting Feature | Bulkhead – Front Mount |
| Isolated | Yes |
| Low PIM | No |
| Frequency (Max GHz) | 4 |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Contact Finish | Silver |
| Contact Material | Brass |
| Orientation | Straight |
| Coupling Mechanism | Bayonet |
| Mating Cycles (Min) | 500 |
| Termination Style | Solder Cup |
| Extended Dielectric Length | 0.077 Inches (1.96 mm) |
