031-15

$13.83

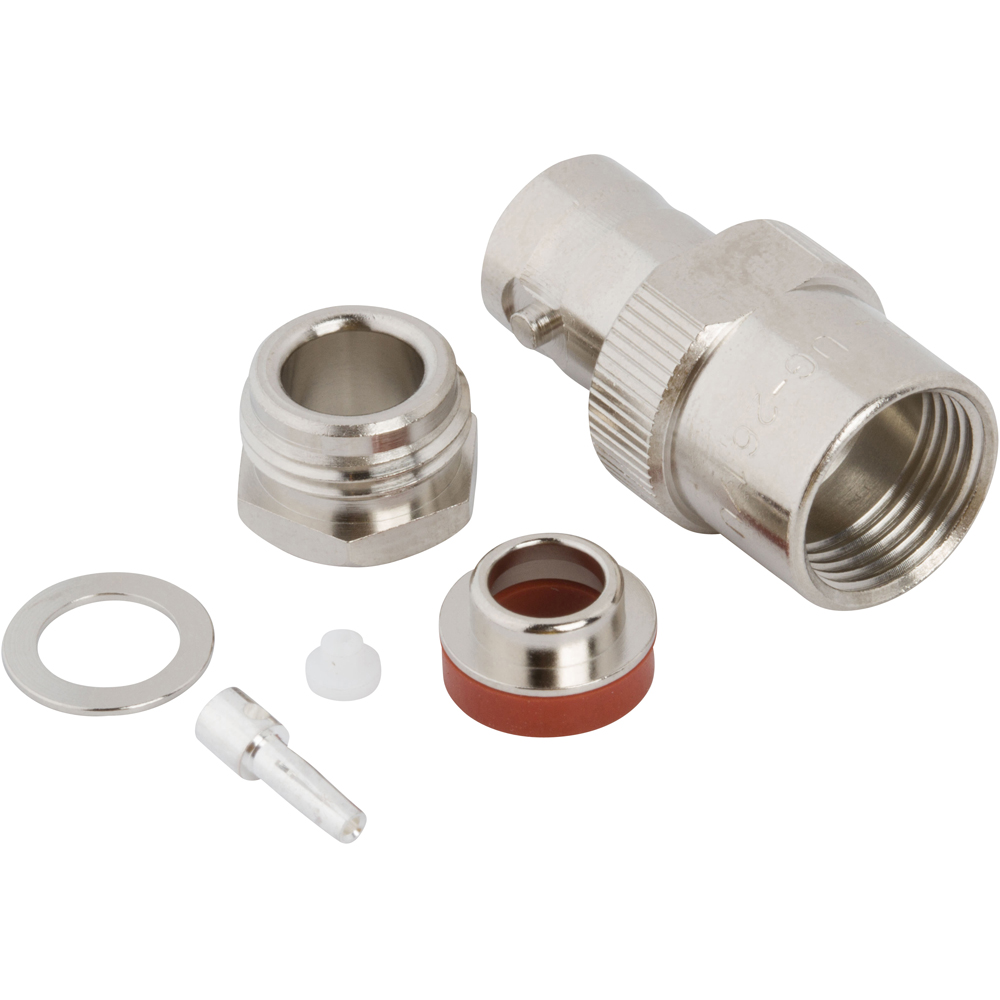

UG-261/U BNC Straight Clamp Jack RG-59 RG-62 50 Ohm

Quantity	100 - 249	250 - 499	500
Price	$13.83	$13.58	$11.99

Summary
031-15	$13.83
1x	$13.83

SKU: 031-15 Category: BNC Connectors

UG-261/U BNC Straight Clamp Jack RG-59 RG-62 50 Ohm

Manufacturer	Amphenol RF
Body Finish	Nickel
Body Material	Brass
Cable Group	D
Cable Type	Belden 8221, Belden 8241, Belden 9169, Belden 9204, Belden 9228, Canare LV-61S, RG-59, RG-62
Impedance (Ohms)	50
Insulator Material	PTFE
IP Rating	Not Rated
Gender	Jack
Panel Mounting Feature	Not Applicable
Isolated	No
Low PIM	No
Frequency (Max GHz)	4
Temp (Max Degrees Celsius)	165
Temp (Min Degrees Celsius)	-65
Non Magnetic	No
Contact Finish	Silver
Contact Material	Beryllium Copper
Orientation	Straight
Coupling Mechanism	Bayonet
Mating Cycles (Min)	500
Termination Style	Cable – Clamp
