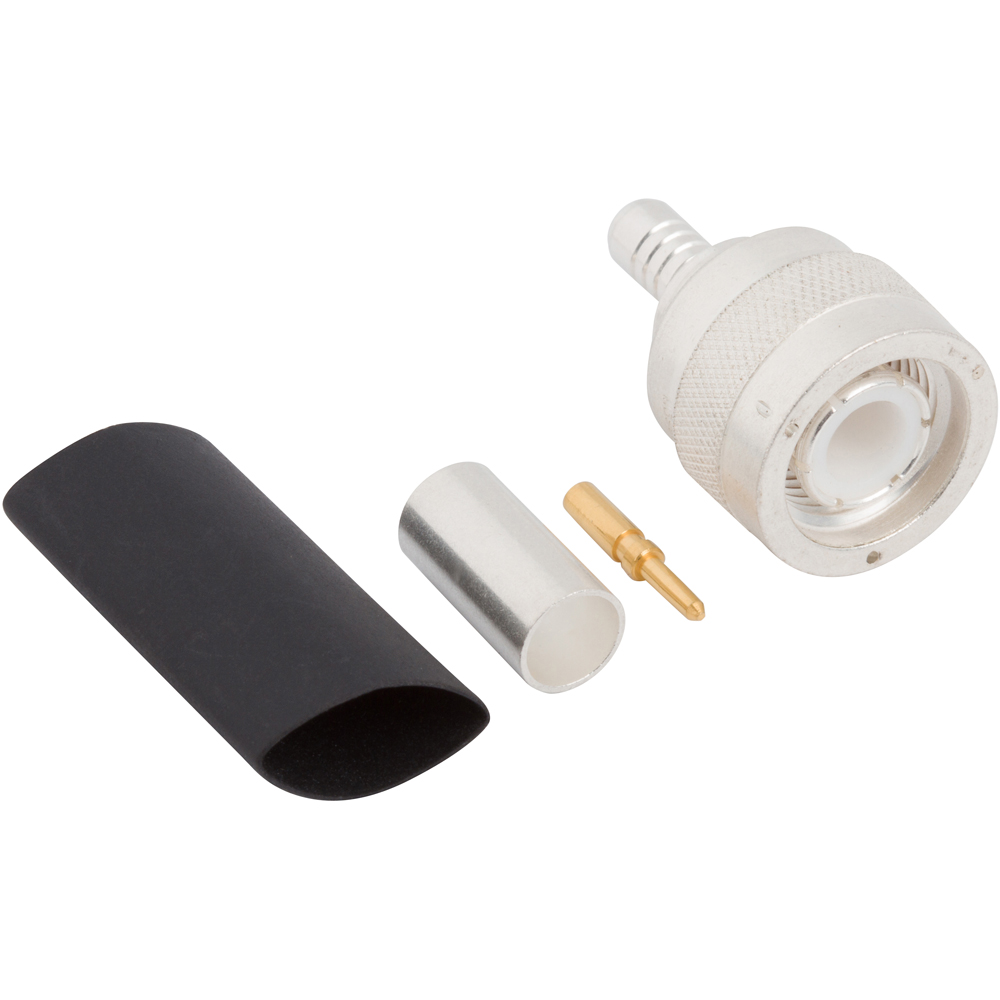

M39012/26-0011 RF Connector TNC Straight Crimp Plug RG-55 RG-142 RG-223 RG-400 50 Ohm QPL Approved
TNC Connectors
031-2253
$11.16
M39012/26-0011 TNC Straight Crimp Plug RG-55 RG-142 RG-223 RG-400 50 Ohm QPL Approved
| Weight | 0.00975 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Silver |
| Body Material | Brass |
| Cable Group | C1 |
| Cable Type | Belden 83242, RG-142, RG-223, RG-400, RG-55, Times SF-142B |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| IP Rating | Not Rated |
| Gender | Plug |
| Panel Mounting Feature | Not Applicable |
| Operating Level | Commercial |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 11 |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Thread Direction | Standard |
| Contact Finish | Gold |
| Orientation | Straight |
| Contact Termination | Crimp |
| Coupling Mechanism | Threaded |
| Mating Cycles (Min) | 500 |
| Termination Style | Cable – Crimp |
