031-2368

$5.19

TNC Straight Crimp Plug RG-59 RG-62 50 Ohm

Quantity	100 - 249	250 - 499	500 - 999	1000 - 2499	2500 - 4999	5000
Price	$5.19	$5.09	$4.40	$3.92	$3.39	$3.32

Summary
031-2368	$5.19
1x	$5.19

SKU: 031-2368 Category: TNC Connectors

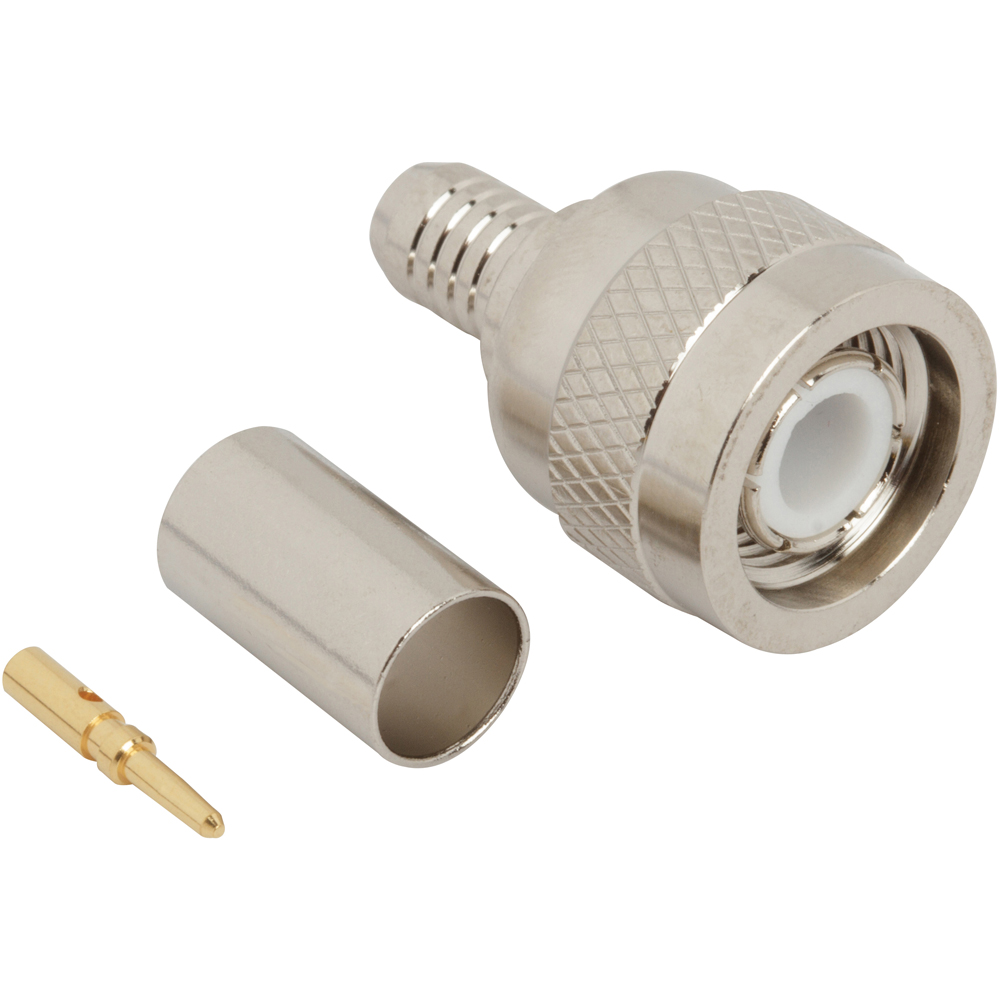

RF Connector TNC Straight Crimp Plug RG-59 RG-62 50 Ohm

Weight	0.00136 kg
Manufacturer	Amphenol RF
Body Finish	Nickel
Body Material	Brass
Cable Group	D
Cable Type	Belden 8221, Belden 8241, Belden 9169, Belden 9204, Belden 9228, Canare LV-61S, RG-59, RG-62
Impedance (Ohms)	50
Insulator Material	PTFE
IP Rating	Not Rated
Gender	Plug
Panel Mounting Feature	Not Applicable
Isolated	No
Low PIM	No
Frequency (Max GHz)	11
Temp (Max Degrees Celsius)	165
Temp (Min Degrees Celsius)	-65
Non Magnetic	No
Thread Direction	Standard
Contact Finish	Gold
Contact Material	Brass
Contact Termination	Crimp
Coupling Mechanism	Threaded
Mating Cycles (Min)	500
Termination Style	Cable – Crimp
Assembly Tool	CTL-8
