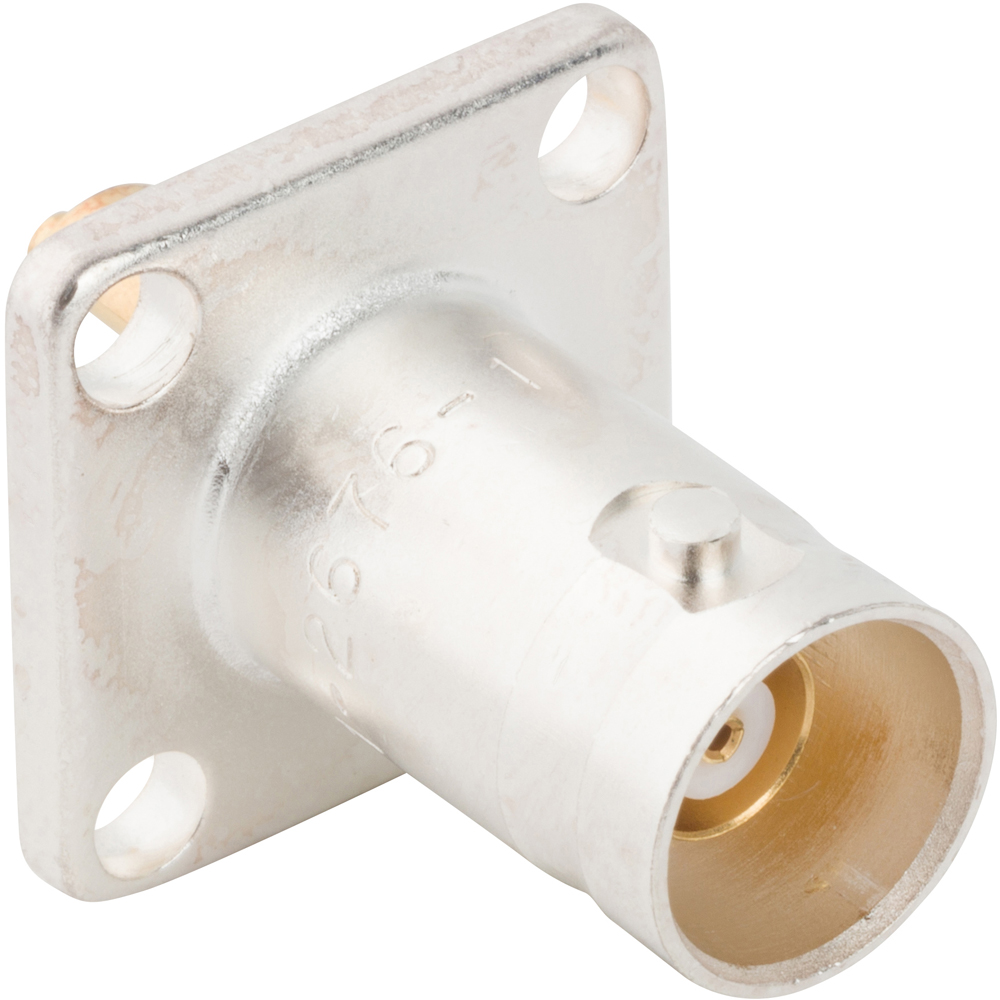

RF Connector Triax Panel Mount Jack 4-Hole Flange Solder Cup Non-Constant Impedance
Triax Connectors
031-2676-1
$138.04
Triax Panel Mount Jack 4-Hole Flange Solder Cup Non-Constant Impedance
| Manufacturer | Amphenol RF |
|---|---|
| Body Finish | Silver |
| Body Material | Brass |
| Cable Group | Not Applicable |
| Cable Type | Not Applicable |
| Impedance (Ohms) | Non-Constant |
| Insulator Material | PTFE |
| IP Rating | Not Rated |
| Gender | Jack |
| Panel Mounting Feature | 4-Hole Flange |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 0.5 |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Thread Direction | Standard |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination | Solder |
| Coupling Mechanism | Bayonet |
| Mating Cycles (Min) | 500 |
| Termination Style | Solder Cup |
