031-320-RFX

$1.85

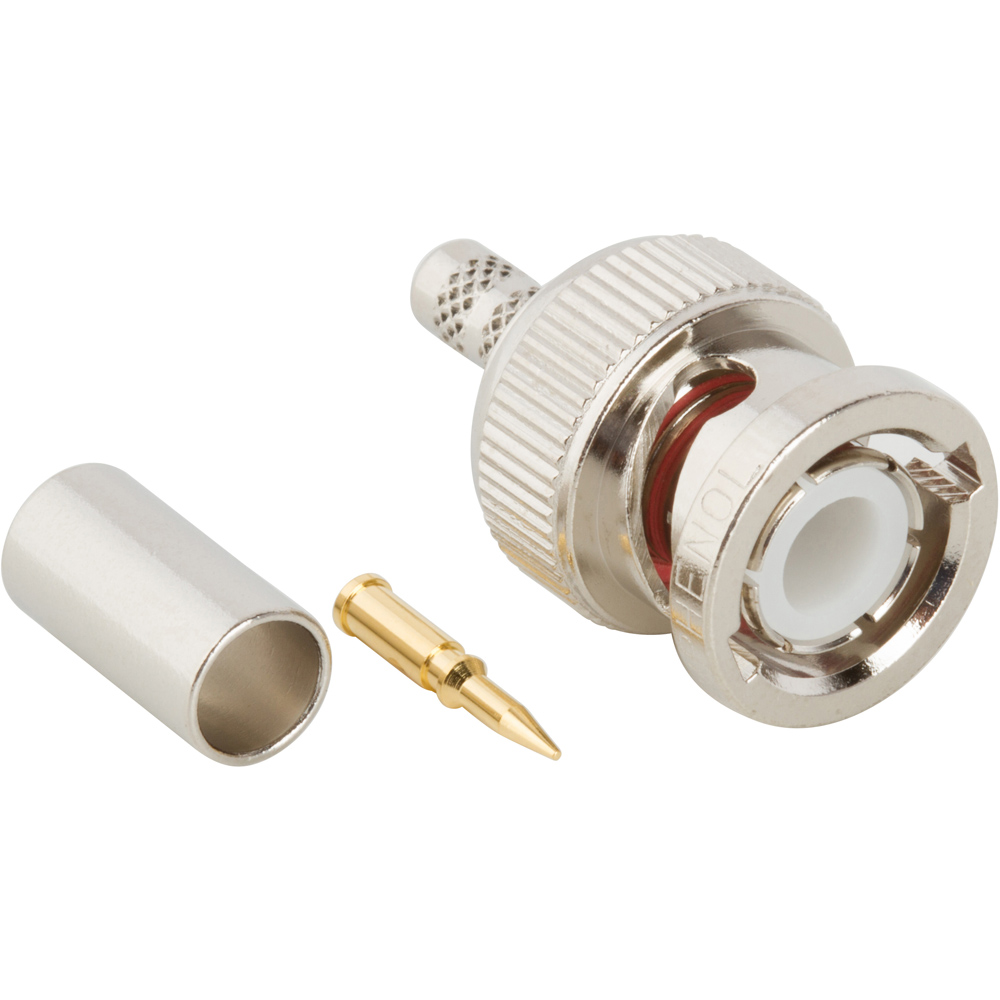

BNC Straight Crimp Plug RG-55 RG-142 RG-223 RG-400 50 Ohm

Quantity	100 - 499	500 - 999	1000 - 4999	5000
Price	$1.85	$1.64	$1.45	$1.38

Summary
031-320-RFX	$1.85
1x	$1.85

SKU: 031-320-RFX Category: BNC Connectors

RF Connector BNC Straight Crimp Plug RG-55 RG-142 RG-223 RG-400 50 Ohm

Manufacturer	Amphenol RF
Body Finish	Nickel
Body Material	Brass
Cable Group	C1
Cable Type	Belden 7806A, Belden 8219, Belden 8240, Belden 8259, Belden 8262, Belden 9201, Belden 9203, Belden 9310, Belden 9311, RG-141, RG-58, Times LMR-195, Times LMR-200-LLPL
Impedance (Ohms)	50
Insulator Material	Delrin
IP Rating	Not Rated
Gender	Plug
Panel Mounting Feature	Not Applicable
Operating Level	Commercial
Isolated	No
Low PIM	No
Frequency (Max GHz)	4
Temp (Max Degrees Celsius)	165
Temp (Min Degrees Celsius)	-65
Non Magnetic	No
Contact Finish	Gold
Contact Material	Brass
Contact Termination	Crimp
Coupling Mechanism	Bayonet
Mating Cycles (Min)	500
Termination Style	Cable – Crimp
Assembly Tool	CTL-3
