031-328-RFX

$1.71

BNC Straight Crimp Jack RG-59 RG-62 50 Ohm

Quantity	100 - 249	250
Price	$1.71	$1.69

Summary
031-328-RFX	$1.71
1x	$1.71

SKU: 031-328-RFX Category: BNC Connectors

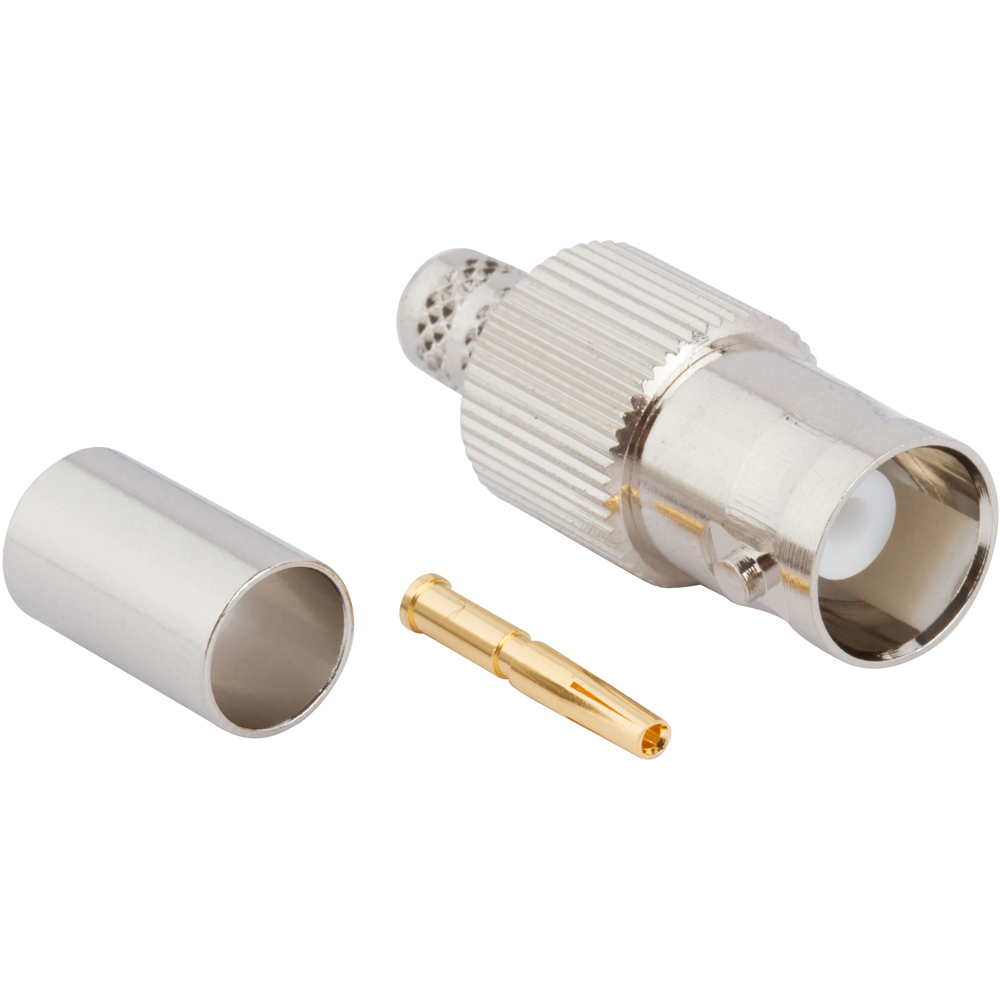

RF Connector BNC Straight Crimp Jack RG-59 RG-62 50 Ohm

Manufacturer	Amphenol RF
Body Finish	Nickel
Body Material	Brass
Cable Group	D
Cable Type	Belden 8221, Belden 8241, Belden 9169, Belden 9204, Belden 9228, Canare LV-61S, RG-59, RG-62
Impedance (Ohms)	50
Insulator Material	PTFE
IP Rating	Not Rated
Gender	Jack
Panel Mounting Feature	Not Applicable
Operating Level	Commercial
Isolated	No
Low PIM	No
Frequency (Max GHz)	1
Temp (Max Degrees Celsius)	85
Temp (Min Degrees Celsius)	-40
Non Magnetic	No
Contact Finish	Gold
Contact Material	Phosphor Bronze
Contact Termination	Solder
Coupling Mechanism	Bayonet
Mating Cycles (Min)	500
Termination Style	Cable – Crimp
Assembly Tool	CTL-8
