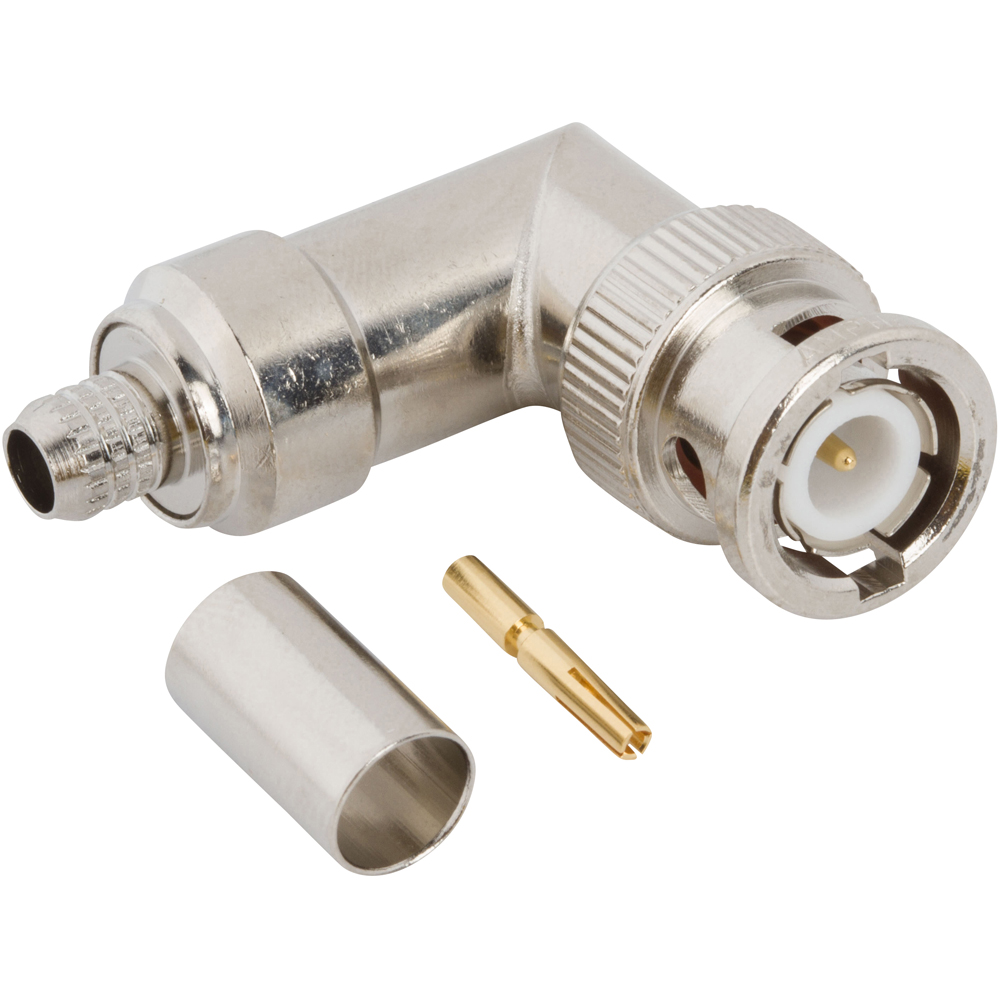

RF Connector BNC Right Angle Crimp Plug RG-59 20AWG RG-59DS 50 Ohm
| Weight | 0.028123 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | G |
| Cable Type | Belden 8281, Belden 88281, Belden 9141, Belden 9231, Canare LV-775, RD-59, RG-59 20AWG, RG-59 Double Shield |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| IP Rating | Not Rated |
| Gender | Plug |
| Panel Mounting Feature | Not Applicable |
| Operating Level | Commercial |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 4 |
| Temp (Max Degrees Celsius) | 85 |
| Temp (Min Degrees Celsius) | -40 |
| Non Magnetic | No |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Contact Termination | Crimp |
| Coupling Mechanism | Bayonet |
| Mating Cycles (Min) | 500 |
| Termination Style | Cable – Crimp |
| Assembly Tool | CTL-8 |
