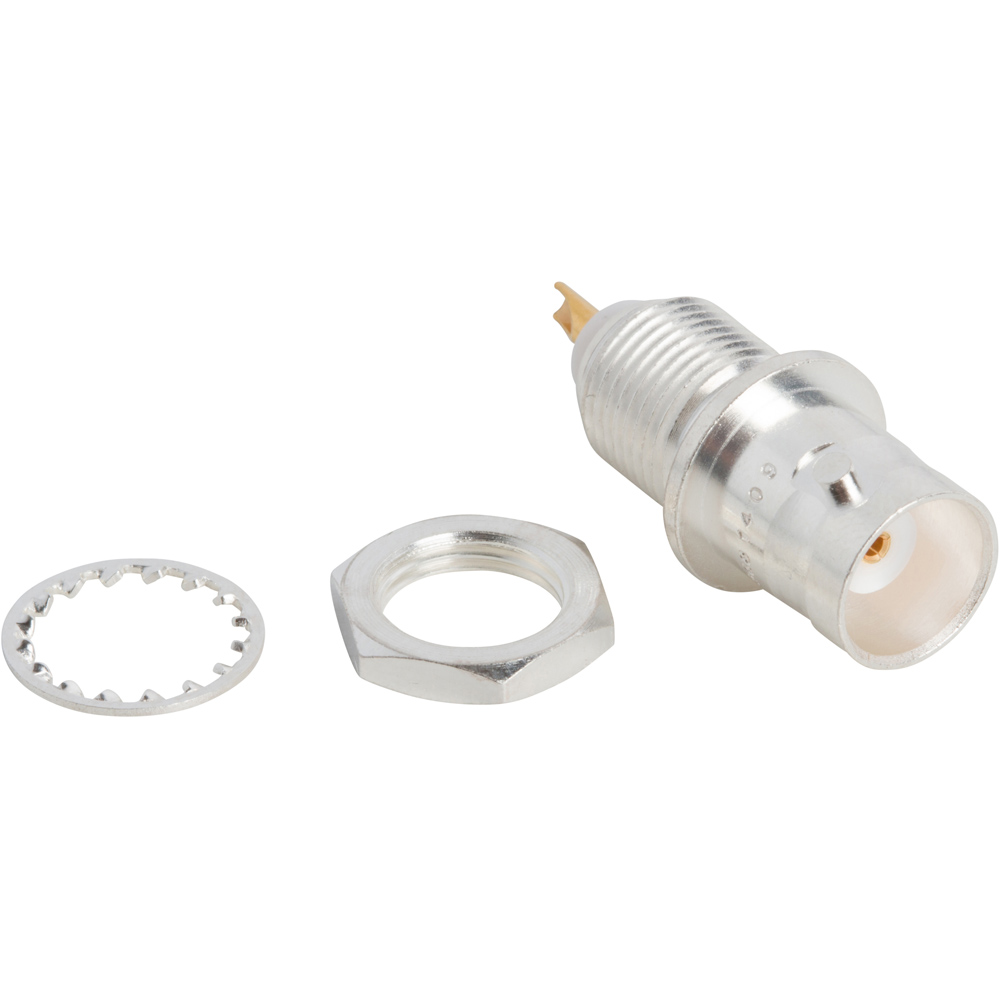

M39012/21-0002 RF Connector BNC Straight Receptacle Jack Solder Cup Bulkhead Front Mount 50 Ohm QPL Approved
BNC Connectors
031-3376
$14.66
M39012/21-0002 BNC Straight Receptacle Jack Solder Cup Bulkhead Front Mount 50 Ohm QPL Approved
| Weight | 0.008164 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Silver |
| Body Material | Brass |
| Cable Group | Not Applicable |
| Cable Type | Not Applicable |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| IP Rating | Not Rated |
| Gender | Jack |
| Panel Mounting Feature | Bulkhead – Front Mount |
| Operating Level | Performance |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 4 |
| Temp (Max Degrees Celsius) | 85 |
| Temp (Min Degrees Celsius) | -40 |
| Non Magnetic | No |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Contact Termination | Solder |
| Coupling Mechanism | Bayonet |
| Mating Cycles (Min) | 500 |
| Termination Style | Solder Cup |
