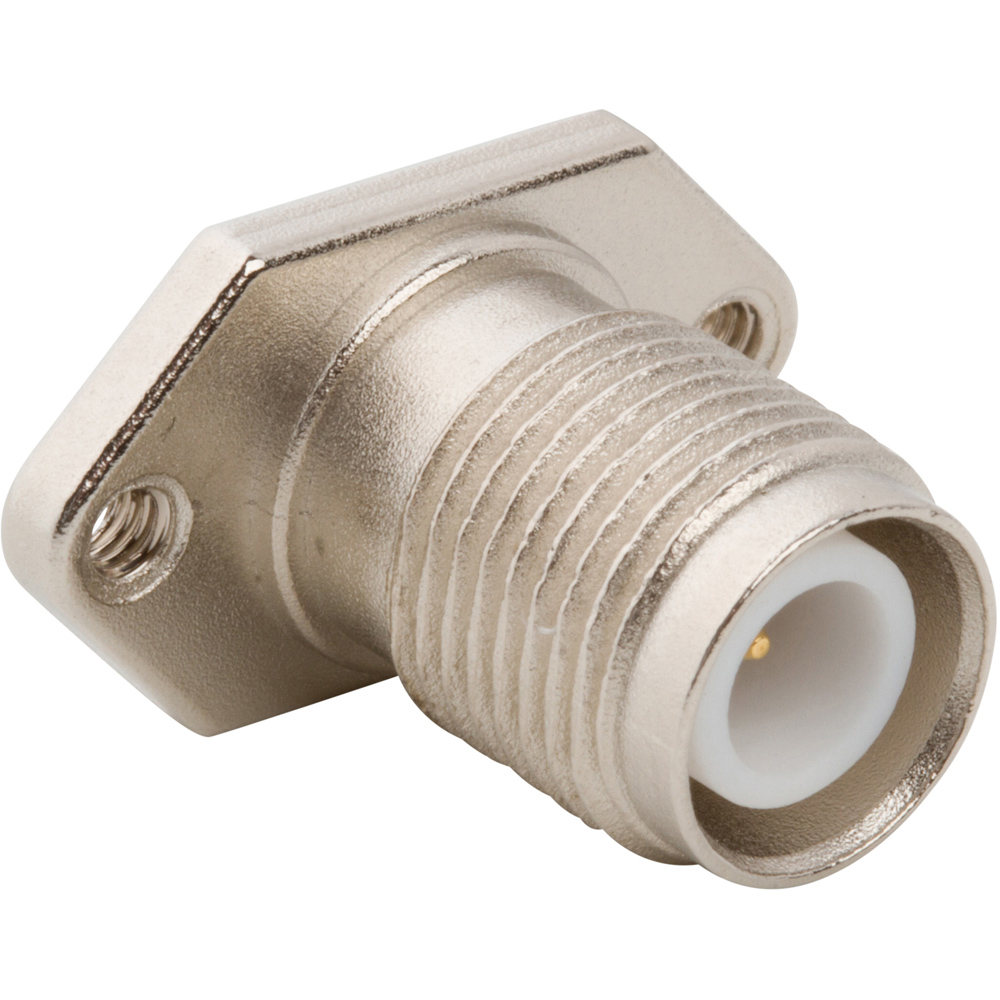

AMC Jack to RP-TNC Jack Adapter 50 Ohm Straight 2-Hole Flange
AMC to RP-TNC Adapters, RP-TNC to AMC Adapters
031-6101
$7.65
AMC Jack to RP-TNC Jack Adapter 50 Ohm Straight 2-Hole Flange
| Manufacturer | Amphenol RF |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| Panel Mounting Feature | 2-Hole Flange |
| Operating Level | Commercial |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 6 |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Adapter Side 1 Series | AMC |
| Adapter Side 1 Style | Jack |
| Adapter Side 2 Series | RP-TNC |
| Adapter Side 2 Style | Jack |
| Contact Finish | Gold |
| Contact Material | Brass |
