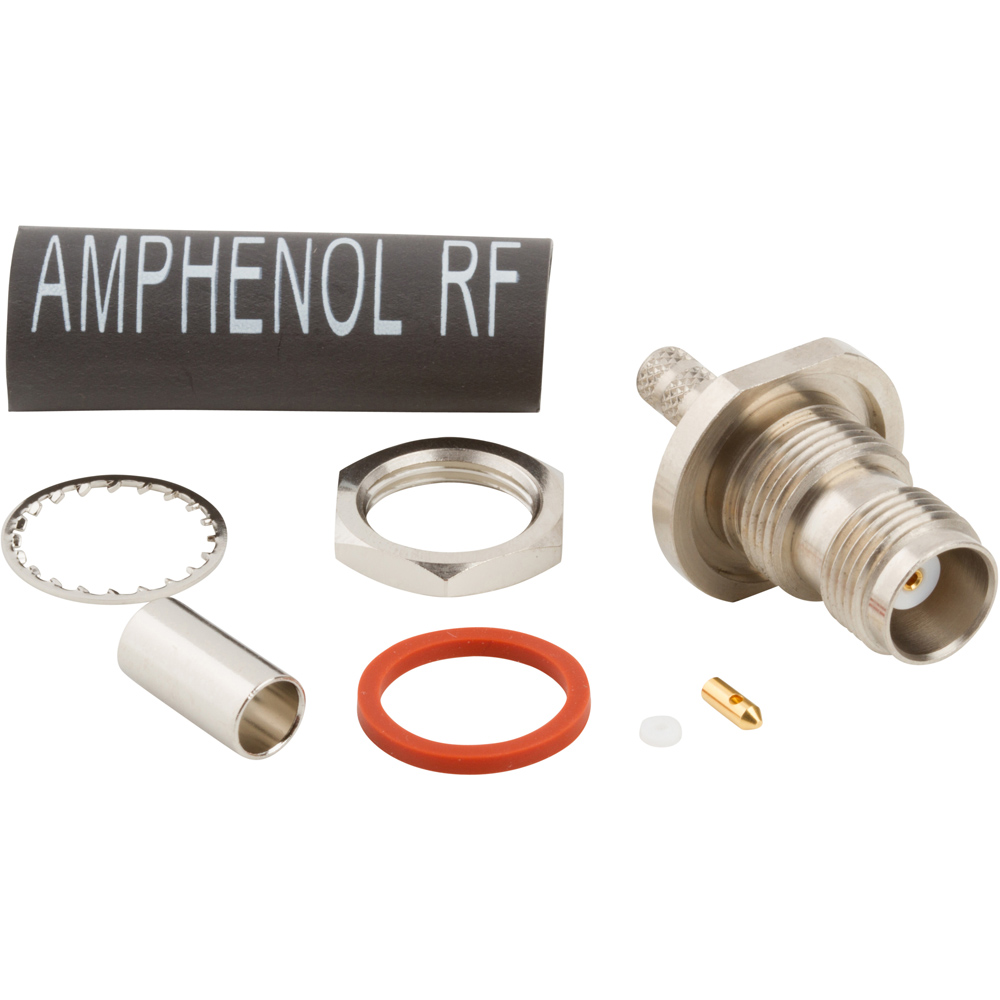

RF Connector TNC Straight Crimp Jack Times LMR-200 Optimized Bulkhead Rear Mount 50 Ohm IP67 ARC
TNC Connectors
031-6507
$18.70
TNC Straight Crimp Jack Times LMR-200 Optimized Bulkhead Rear Mount 50 Ohm IP67 ARC
| Weight | 0.020221 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | LL03 |
| Cable Type | Times LMR-200 Optimized |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| IP Rating | IP67 |
| Gender | Jack |
| Panel Mounting Feature | Bulkhead – Rear Mount |
| Operating Level | Performance |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 6 |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Thread Direction | Standard |
| Contact Finish | Gold |
| Orientation | Straight |
| Contact Termination | Solder |
| Coupling Mechanism | Threaded |
| Mating Cycles (Min) | 500 |
| Termination Style | Cable – Crimp |
| Assembly Tool | CTL-5 |
