031-6822

$6.93

TNC Right Angle Crimp Plug Times LMR-195 Optimized 50 Ohm

Quantity	100 - 249	250 - 499	500 - 999	1000
Price	$6.93	$6.72	$6.33	$6.09

Summary
031-6822	$6.93
1x	$6.93

SKU: 031-6822 Category: TNC Connectors

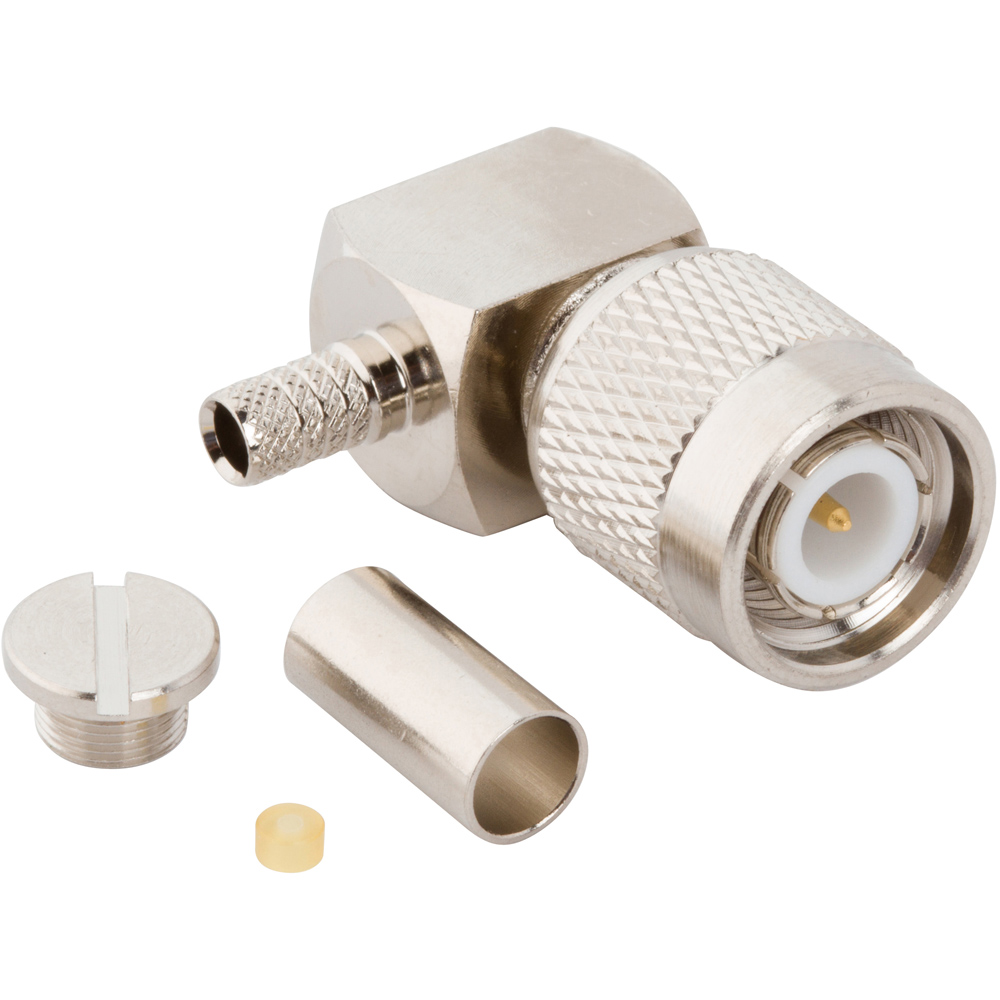

RF Connector TNC Right Angle Crimp Plug Times LMR-195 Optimized 50 Ohm

Weight	0.02883 kg
Manufacturer	Amphenol RF
Body Finish	Nickel
Body Material	Brass
Cable Group	LL02
Cable Type	Times LMR-195 Optimized, Times LMR-200-LLPL Optimized
Impedance (Ohms)	50
Insulator Material	PTFE
IP Rating	Not Rated
Gender	Plug
Panel Mounting Feature	Not Applicable
Isolated	No
Low PIM	No
Frequency (Max GHz)	6
Temp (Max Degrees Celsius)	165
Temp (Min Degrees Celsius)	-65
Non Magnetic	No
Thread Direction	Standard
Contact Finish	Gold
Contact Material	Brass
Contact Termination	Solder
Coupling Mechanism	Threaded
Mating Cycles (Min)	500
Termination Style	Cable – Crimp
