031-6827

$6.80

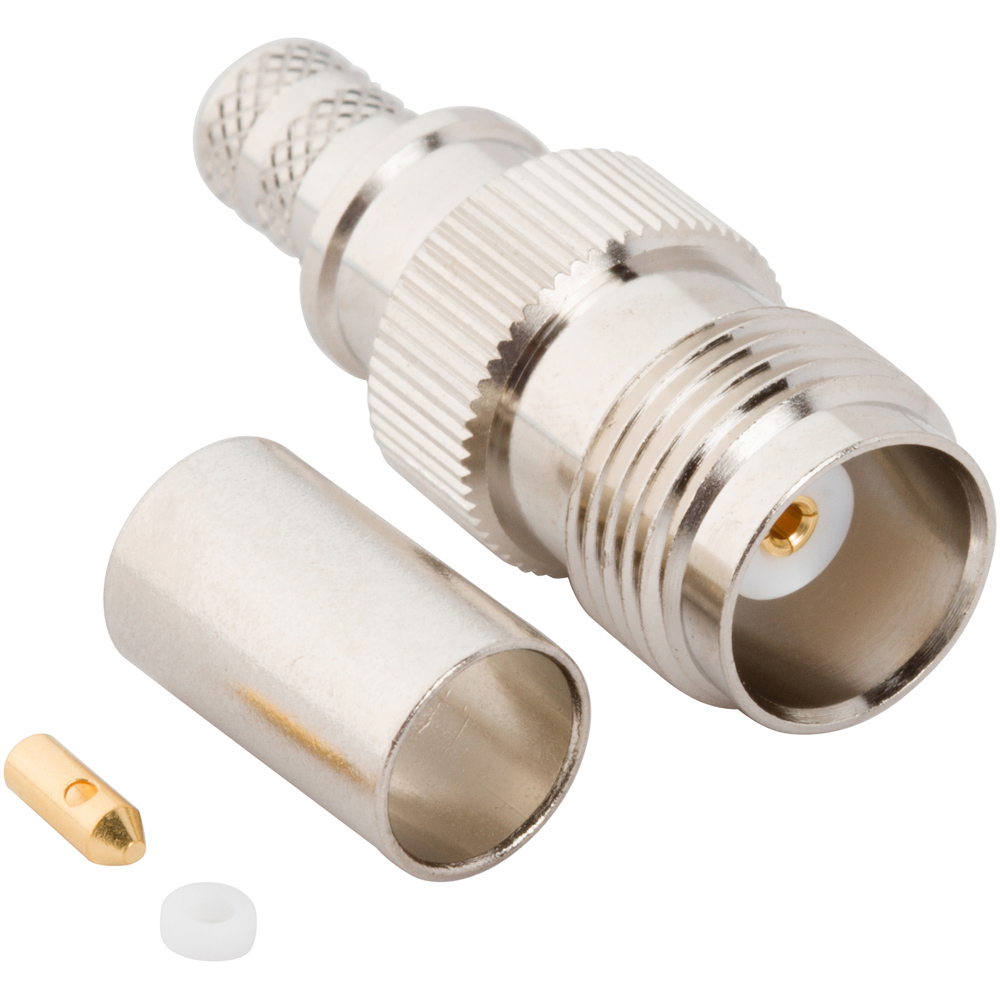

TNC Straight Crimp Jack Times LMR-240 Optimized 50 Ohm

Quantity	100 - 249	250 - 499	500 - 999	1000
Price	$6.80	$6.69	$6.28	$6.06

Summary
031-6827	$6.80
1x	$6.80

SKU: 031-6827 Category: TNC Connectors

RF Connector TNC Straight Crimp Jack Times LMR-240 Optimized 50 Ohm

Weight	0.00972 kg
Manufacturer	Amphenol RF
Body Finish	Nickel
Body Material	Brass
Cable Group	LL04
Cable Type	Times LMR-240 Optimized, Times LMR-240 UltraFlex Optimized
Impedance (Ohms)	50
Insulator Material	PTFE
IP Rating	Not Rated
Gender	Jack
Panel Mounting Feature	Not Applicable
Isolated	No
Low PIM	No
Frequency (Max GHz)	6
Temp (Max Degrees Celsius)	165
Temp (Min Degrees Celsius)	-65
Non Magnetic	No
Thread Direction	Standard
Contact Finish	Gold
Contact Material	Beryllium Copper
Contact Termination	Solder
Coupling Mechanism	Threaded
Mating Cycles (Min)	500
Termination Style	Cable – Crimp
