031-6924

$12.77

BNC Straight Crimp Plug RG-58 RG-141 Times LMR-195 50 Ohm IP67

Quantity	1 - 9	10 - 24	25 - 49	50 - 99	100 - 249	250 - 499	500 - 999	1000
Price	$12.77	$12.26	$11.71	$11.00	$10.73	$9.66	$9.39	$8.61

Summary
031-6924	$12.77
1x	$12.77

SKU: 031-6924 Category: BNC Connectors

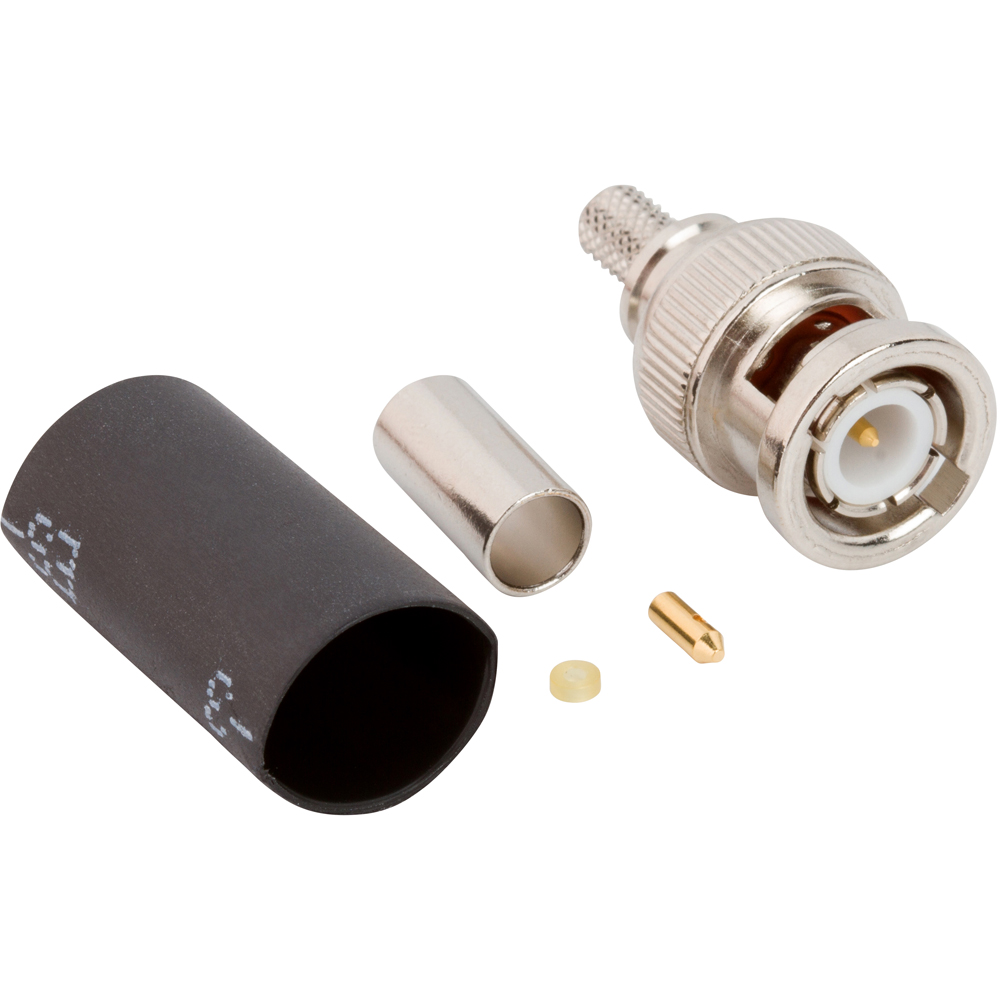

RF Connector BNC Straight Crimp Plug RG-58 RG-141 Times LMR-195 50 Ohm IP67

Weight	0.01057 kg
Manufacturer	Amphenol RF
Body Finish	Nickel
Body Material	Brass
Cable Group	C
Cable Type	Belden 7806A, Belden 8219, Belden 8240, Belden 8259, Belden 8262, Belden 9201, Belden 9203, Belden 9310, Belden 9311, RG-141, RG-58, Times LMR-195, Times LMR-200-LLPL
Impedance (Ohms)	50
Insulator Material	PTFE
IP Rating	IP67
Gender	Plug
Panel Mounting Feature	Not Applicable
Isolated	No
Low PIM	No
Frequency (Max GHz)	6
Temp (Max Degrees Celsius)	165
Temp (Min Degrees Celsius)	-65
Non Magnetic	No
Contact Finish	Gold
Contact Material	Beryllium Copper
Orientation	Straight
Coupling Mechanism	Bayonet
Mating Cycles (Min)	500
Termination Style	Cable – Crimp
Assembly Tool	CTL-3
