031-70334

$7.63

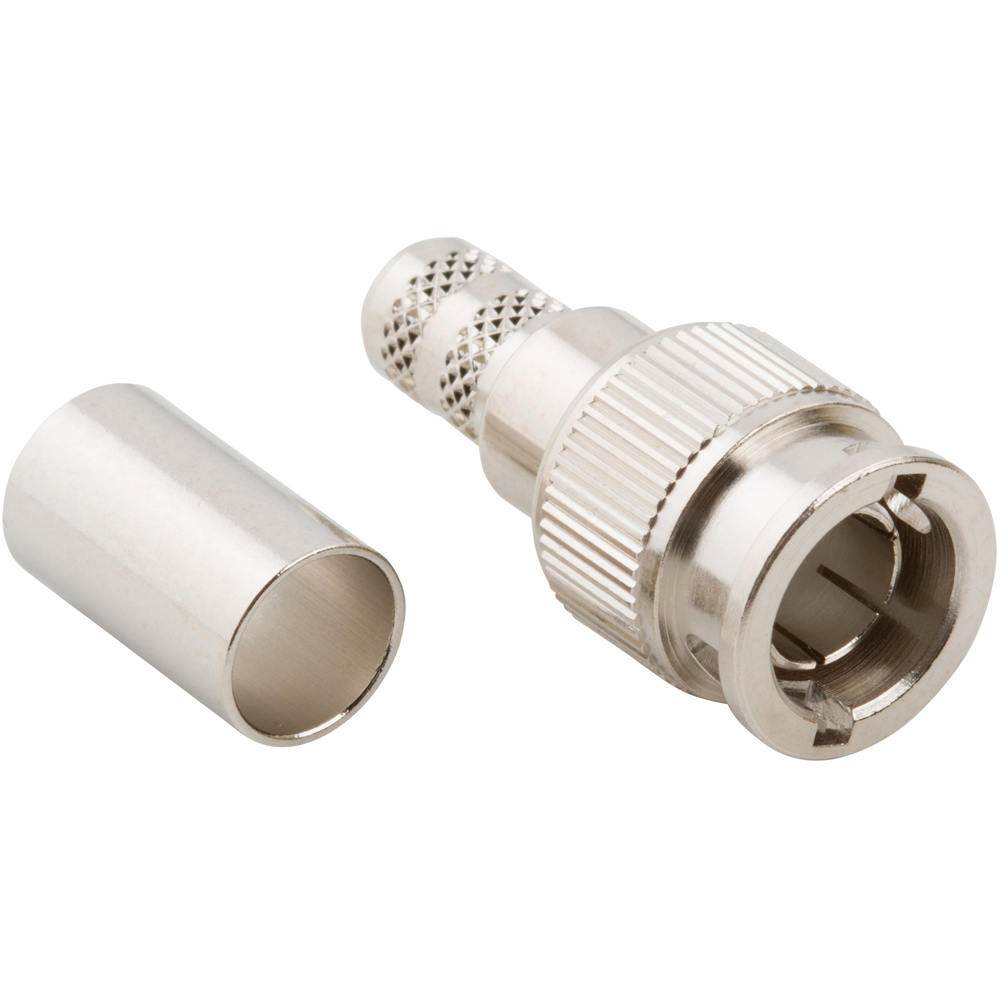

Mini-BNC Straight Crimp Plug RG-59 RG-62 75 Ohm

Quantity	100 - 249	250
Price	$7.63	$7.52

Summary
031-70334	$7.63
1x	$7.63

SKU: 031-70334 Category: Mini-BNC Connectors

RF Connector Mini-BNC Straight Crimp Plug RG-59 RG-62 75 Ohm

Manufacturer	Amphenol RF
Body Finish	Nickel
Body Material	Phosphor Bronze
Cable Group	D
Cable Type	Belden 8221, Belden 8241, Belden 9169, Belden 9204, Belden 9228, Canare LV-61S, RG-59, RG-62
Impedance (Ohms)	75
Insulator Material	PTFE
IP Rating	Not Rated
Gender	Plug
Panel Mounting Feature	Not Applicable
Operating Level	Commercial
Isolated	No
Low PIM	No
Frequency (Max GHz)	4
Temp (Max Degrees Celsius)	165
Temp (Min Degrees Celsius)	-65
Non Magnetic	No
Contact Finish	Gold
Contact Material	Brass
Contact Termination	Solder
Coupling Mechanism	Bayonet
Mating Cycles (Min)	500
Termination Style	Cable – Crimp
Assembly Tool	CTL-8
