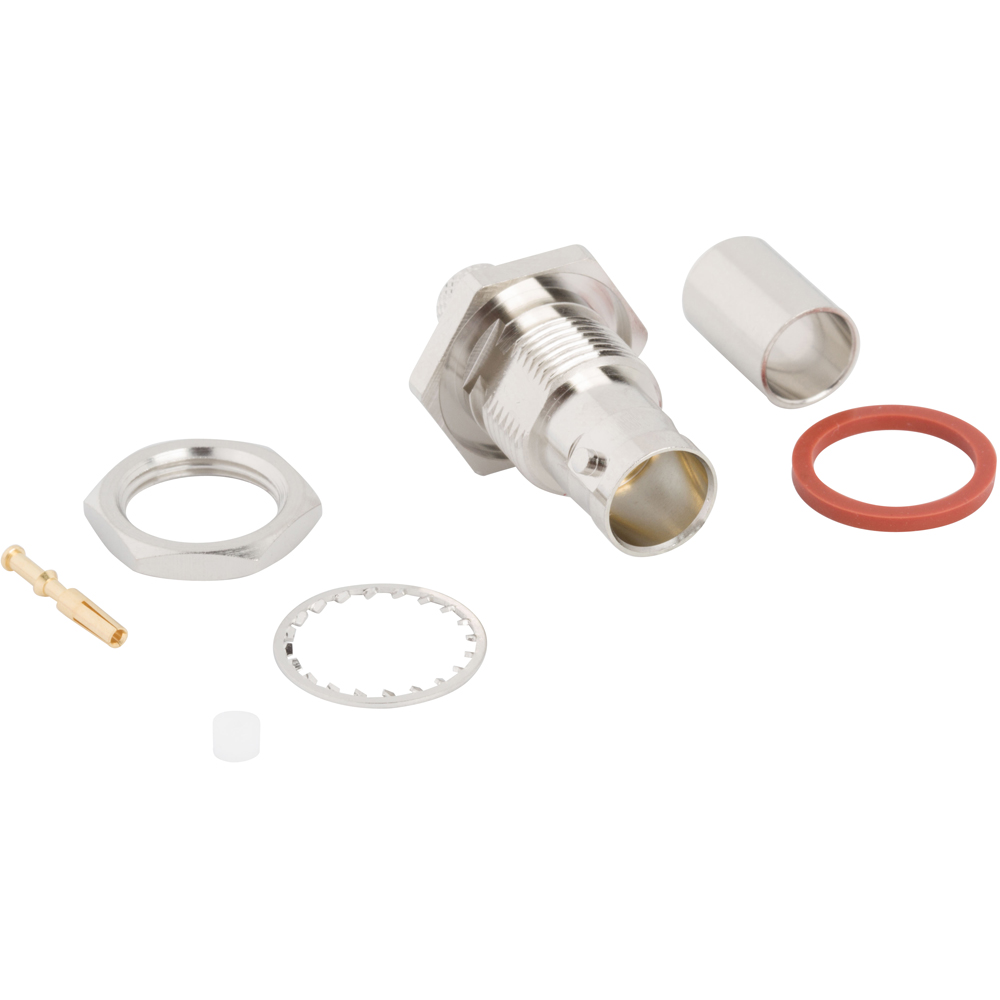

RF Connector BNC Straight Crimp Jack Belden 1694A Belden 4694R Bulkhead Rear Mount 75 Ohm 12G Optimized
BNC Connectors
031-70565-12G
$10.12
BNC Straight Crimp Jack Belden 1694A Belden 4694R Bulkhead Rear Mount 75 Ohm 12G Optimized
| Weight | 0.01856 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | Q |
| Cable Type | Belden 1694A, Belden 4694R, Belden 9248 |
| Impedance (Ohms) | 75 |
| Insulator Material | PTFE |
| IP Rating | Not Rated |
| Gender | Jack |
| Panel Mounting Feature | Bulkhead – Rear Mount |
| Operating Level | Performance |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 12 |
| Temp (Max Degrees Celsius) | 85 |
| Temp (Min Degrees Celsius) | -40 |
| Non Magnetic | No |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Contact Termination | Crimp |
| Coupling Mechanism | Bayonet |
| Mating Cycles (Min) | 500 |
| Termination Style | Cable – Crimp |
| Assembly Tool | 47-10180 |
