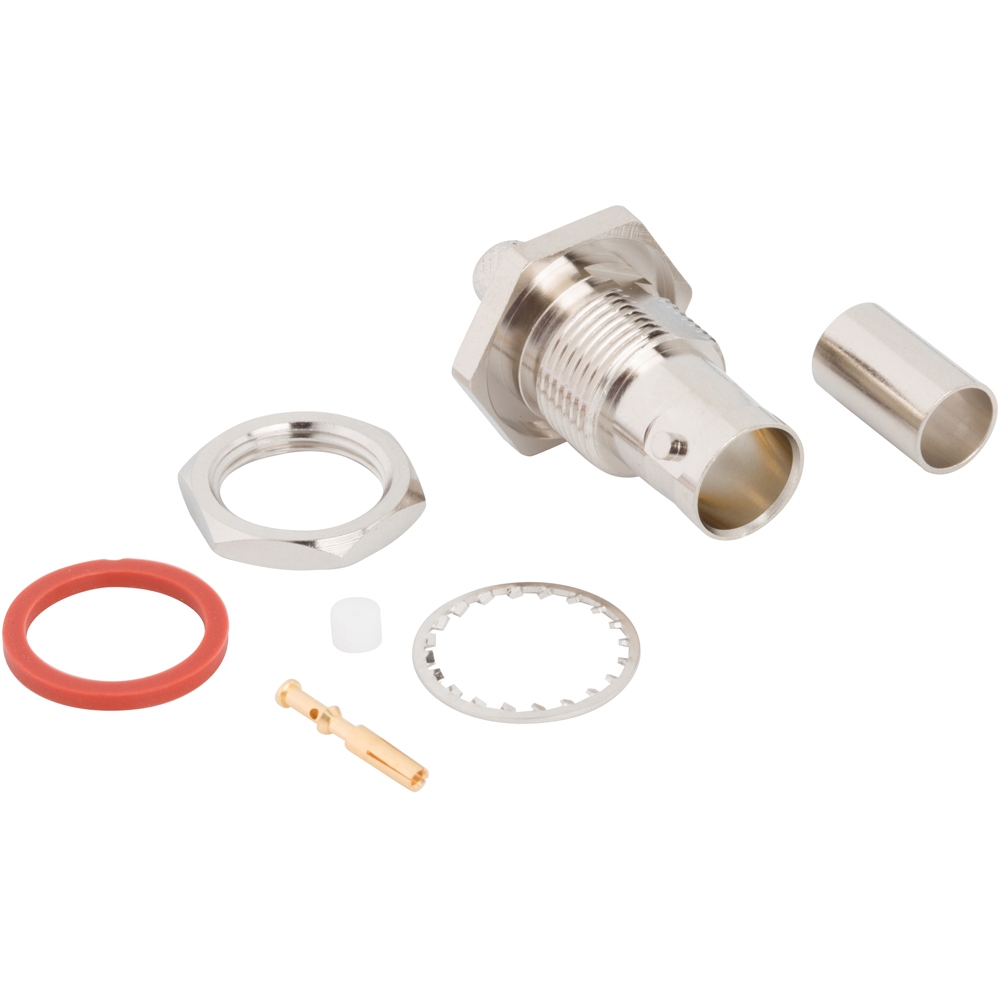

RF Connector BNC Straight Crimp Jack Belden 1505A Belden 4505R AT&T 734 Bulkhead Front Mount 75 Ohm 12G Optimized
BNC Connectors
031-70567-12G
$10.15
BNC Straight Crimp Jack Belden 1505A Belden 4505R AT&T 734 Bulkhead Front Mount 75 Ohm 12G Optimized
| Weight | 0.01758 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | D1 |
| Cable Type | AT&T 734, AT&T 734A, Belden 1426A, Belden 1505A, Belden 4505R, Belden 8212, Belden 8241F, Belden 9100, Belden 9259 |
| Impedance (Ohms) | 75 |
| Insulator Material | PTFE |
| IP Rating | Not Rated |
| Gender | Jack |
| Panel Mounting Feature | Bulkhead – Rear Mount |
| Operating Level | Performance |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 12 |
| Temp (Max Degrees Celsius) | 85 |
| Temp (Min Degrees Celsius) | -40 |
| Non Magnetic | No |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Contact Termination | Crimp |
| Coupling Mechanism | Bayonet |
| Mating Cycles (Min) | 500 |
| Termination Style | Cable – Crimp |
| Assembly Tool | CTL-17 |
