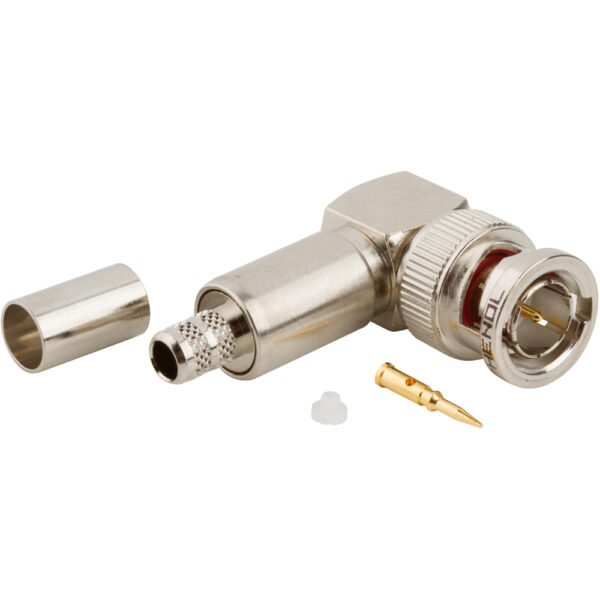

RF Connector BNC Right Angle Crimp Plug RG-59 Plenum 20 AWG 75 Ohm
| Manufacturer | Amphenol RF |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | D3 |
| Cable Type | Belden 1506A, Belden 1825A, Belden 1826A, Belden 4505P, Belden 82108, Belden 89108, Belden 89259, Belden 9104, RG-59 Plenum 20 AWG |
| Impedance (Ohms) | 75 |
| Insulator Material | Delrin |
| IP Rating | Not Rated |
| Gender | Plug |
| Panel Mounting Feature | Not Applicable |
| Operating Level | Commercial |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 2 |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination | Crimp |
| Coupling Mechanism | Bayonet |
| Mating Cycles (Min) | 500 |
| Termination Style | Cable – Crimp |
| Assembly Tool | CTL-8 |
