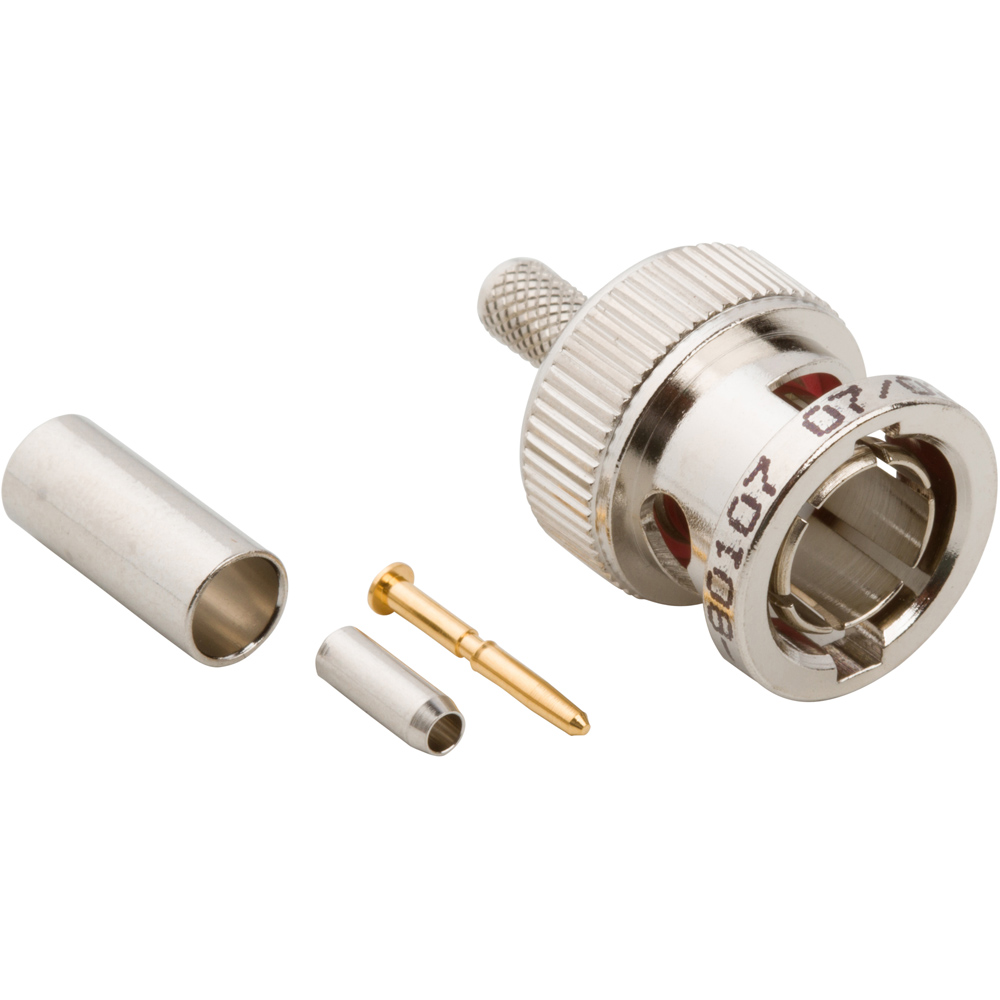

RF Connector BNC Straight Crimp Plug RG-179 Belden 179DT 75 Ohm
| Weight | 0.00925 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Nickel |
| Body Material | Phosphor Bronze |
| Cable Group | S |
| Cable Type | Belden 1520A, Belden 1521A, Belden 1522A, Belden 179DT, Belden 9221, RG-161, RG-179, RG-187 |
| Impedance (Ohms) | 75 |
| Insulator Material | PTFE |
| IP Rating | Not Rated |
| Gender | Plug |
| Panel Mounting Feature | Not Applicable |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 4 |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Contact Finish | Gold |
| Contact Material | Brass |
| Orientation | Straight |
| Coupling Mechanism | Bayonet |
| Mating Cycles (Min) | 500 |
| Termination Style | Cable – Crimp |
| Assembly Tool | CTL-2 |
