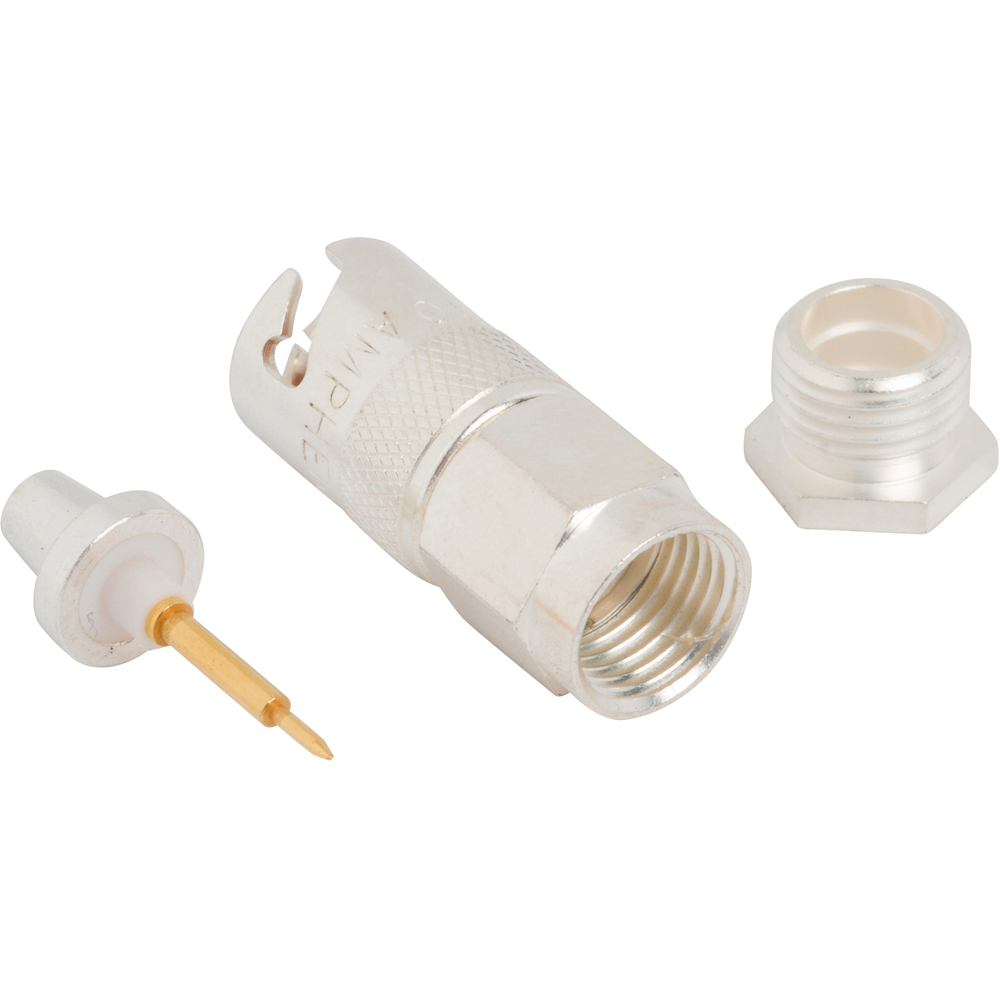

RF Connector TPS Straight Clamp Plug RG-303 50 Ohm
| Manufacturer | Amphenol RF |
|---|---|
| Body Finish | Silver |
| Body Material | Brass |
| Cable Group | Ungrouped |
| Cable Type | RG-303 |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| IP Rating | Not Rated |
| Gender | Plug |
| Panel Mounting Feature | Not Applicable |
| Operating Level | Performance |
| Isolated | No |
| Low PIM | No |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Contact Finish | Silver |
| Contact Material | Brass |
| Contact Termination | Solder |
| Coupling Mechanism | Bayonet |
| Mating Cycles (Min) | 100 |
| Termination Style | Cable – Clamp |
