034-1027

$7.99

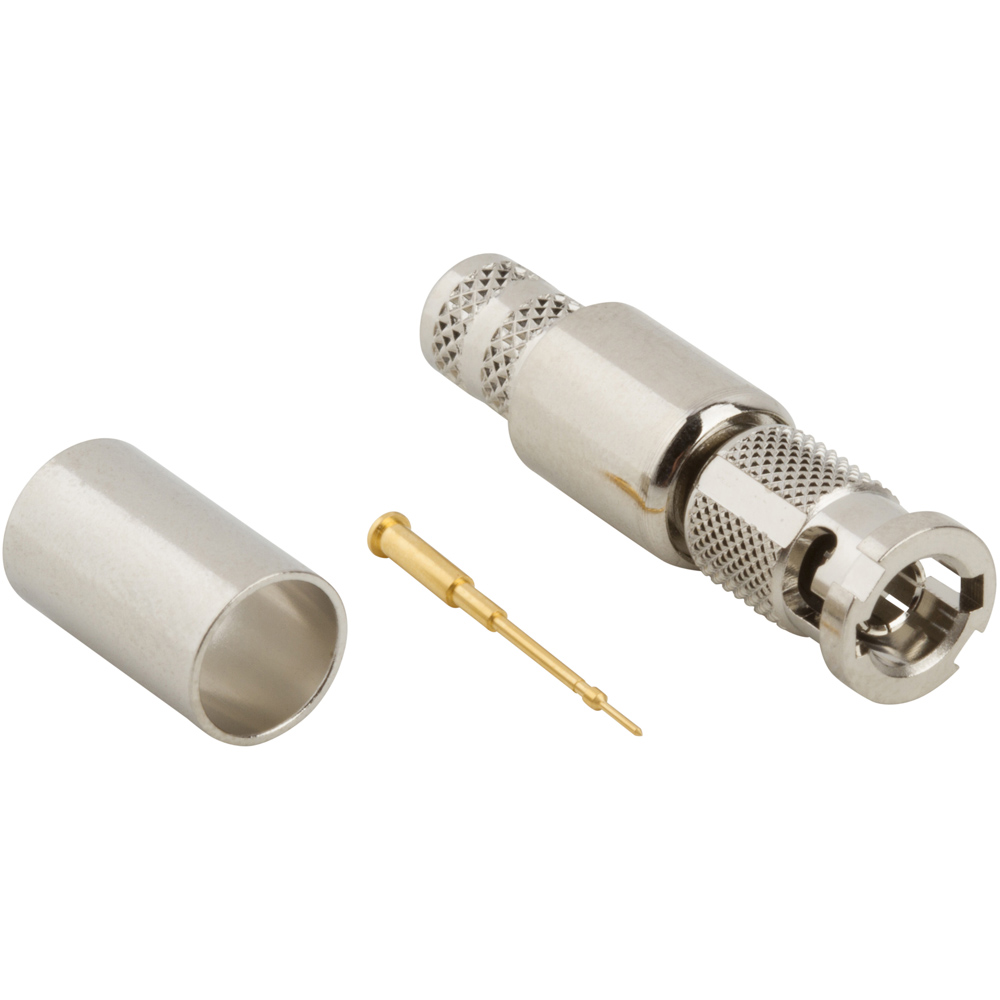

HD-BNC Straight Crimp Plug Belden 1695A 75 Ohm

Quantity	100 - 499	500 - 999	1000
Price	$7.99	$7.52	$6.39

Summary
034-1027	$7.99
1x	$7.99

SKU: 034-1027 Category: HD-BNC Connectors

RF Connector HD-BNC Straight Crimp Plug Belden 1695A 75 Ohm

Weight	0.0037 kg
Manufacturer	Amphenol RF
Body Finish	Nickel
Body Material	Brass
Cable Group	Q1
Cable Type	Belden 1695A, Belden 4694P, Belden 82120, Belden 82248, Belden 87120, Belden 89120, Belden 89248
Impedance (Ohms)	75
Insulator Material	PTFE
IP Rating	Not Rated
Gender	Plug
Panel Mounting Feature	Not Applicable
Operating Level	Performance
Isolated	No
Low PIM	No
Frequency (Max GHz)	4
Temp (Max Degrees Celsius)	85
Temp (Min Degrees Celsius)	-40
Non Magnetic	No
Contact Finish	Gold
Contact Material	Phosphor Bronze
Contact Termination	Crimp
Coupling Mechanism	Bayonet
Mating Cycles (Min)	500
Termination Style	Cable – Crimp
