034-1120-12G

$7.73

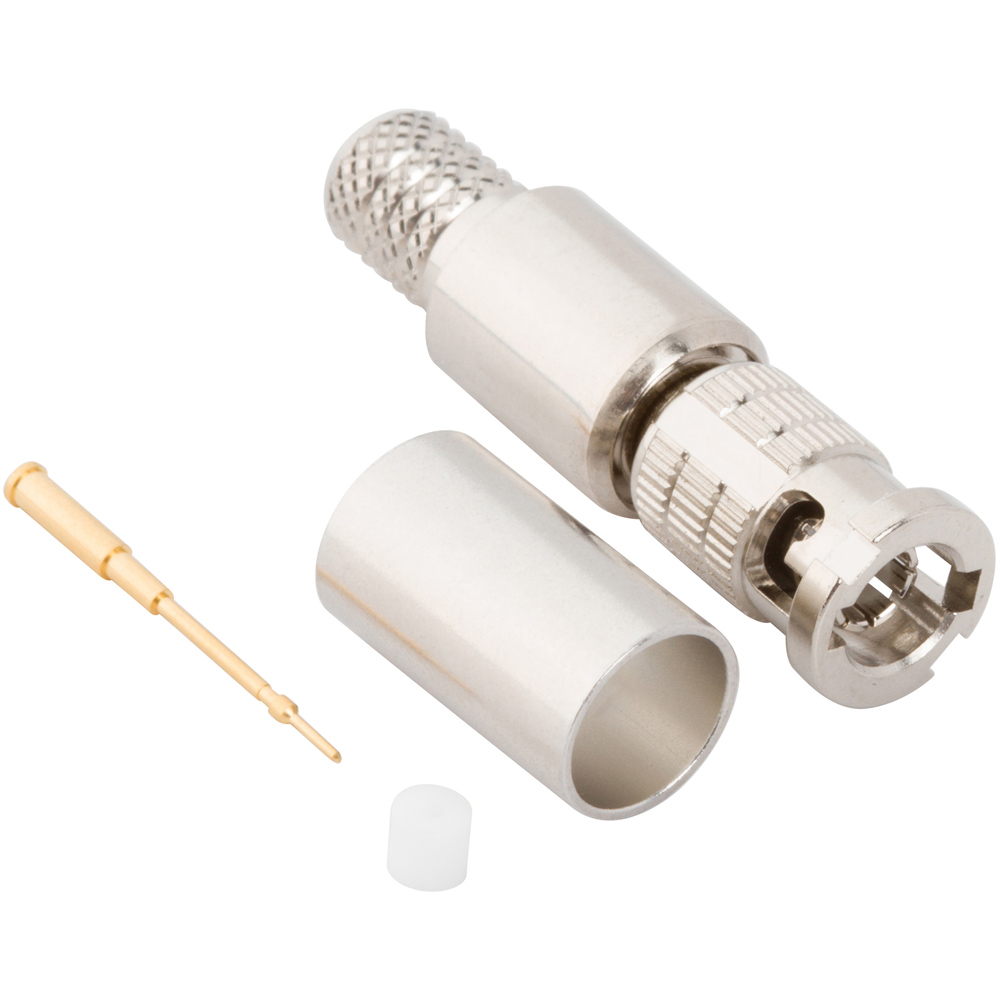

HD-BNC Straight Crimp Plug Belden 1505A Belden 4505R AT&T 734 75 Ohm 12G Optimized

Quantity	100 - 249	250 - 499	500 - 999	1000
Price	$7.73	$6.77	$6.56	$5.94

Summary
034-1120-12G	$7.73
1x	$7.73

SKU: 034-1120-12G Category: HD-BNC Connectors

RF Connector HD-BNC Straight Crimp Plug Belden 1505A Belden 4505R AT&T 734 75 Ohm 12G Optimized

Weight	0.00566 kg
Manufacturer	Amphenol RF
Body Finish	Nickel
Body Material	Brass
Cable Group	D1
Cable Type	AT&T 734, AT&T 734A, Belden 1426A, Belden 1505A, Belden 4505R, Belden 8212, Belden 8241F, Belden 9100, Belden 9259
Impedance (Ohms)	75
Insulator Material	PTFE
IP Rating	Not Rated
Gender	Plug
Panel Mounting Feature	Not Applicable
Operating Level	Performance
Isolated	No
Low PIM	No
Frequency (Max GHz)	18
Temp (Max Degrees Celsius)	85
Temp (Min Degrees Celsius)	-40
Non Magnetic	No
Contact Finish	Gold
Contact Material	Phosphor Bronze
Contact Termination	Crimp
Coupling Mechanism	Bayonet
Mating Cycles (Min)	500
Termination Style	Cable – Crimp
