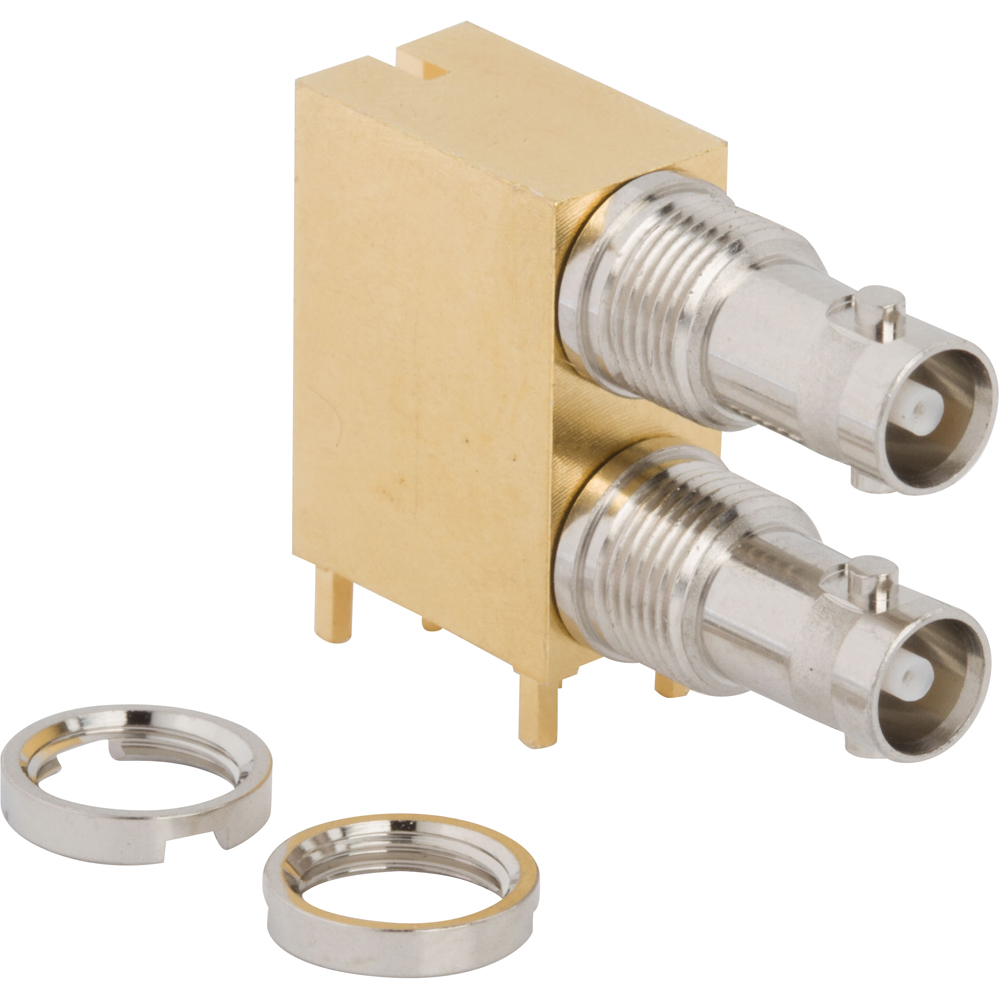

RF Connector HD-BNC Right Angle PCB Dual Port Jack Through Hole Bulkhead Rear Mount 75 Ohm 12G Optimized
HD-BNC Connectors
034-1131-12G
$18.75
HD-BNC Right Angle PCB Dual Port Jack Through Hole Bulkhead Rear Mount 75 Ohm 12G Optimized
| Weight | 0.01 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Gold |
| Body Material | Brass |
| Cable Group | Not Applicable |
| Cable Type | Not Applicable |
| Impedance (Ohms) | 75 |
| Insulator Material | PTFE |
| IP Rating | Not Rated |
| Gender | Jack |
| Panel Mounting Feature | Bulkhead – Rear Mount |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 18 |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Orientation | Right Angle |
| Coupling Mechanism | Bayonet |
| Mating Cycles (Min) | 500 |
| Termination Style | PCB – Through Hole |
