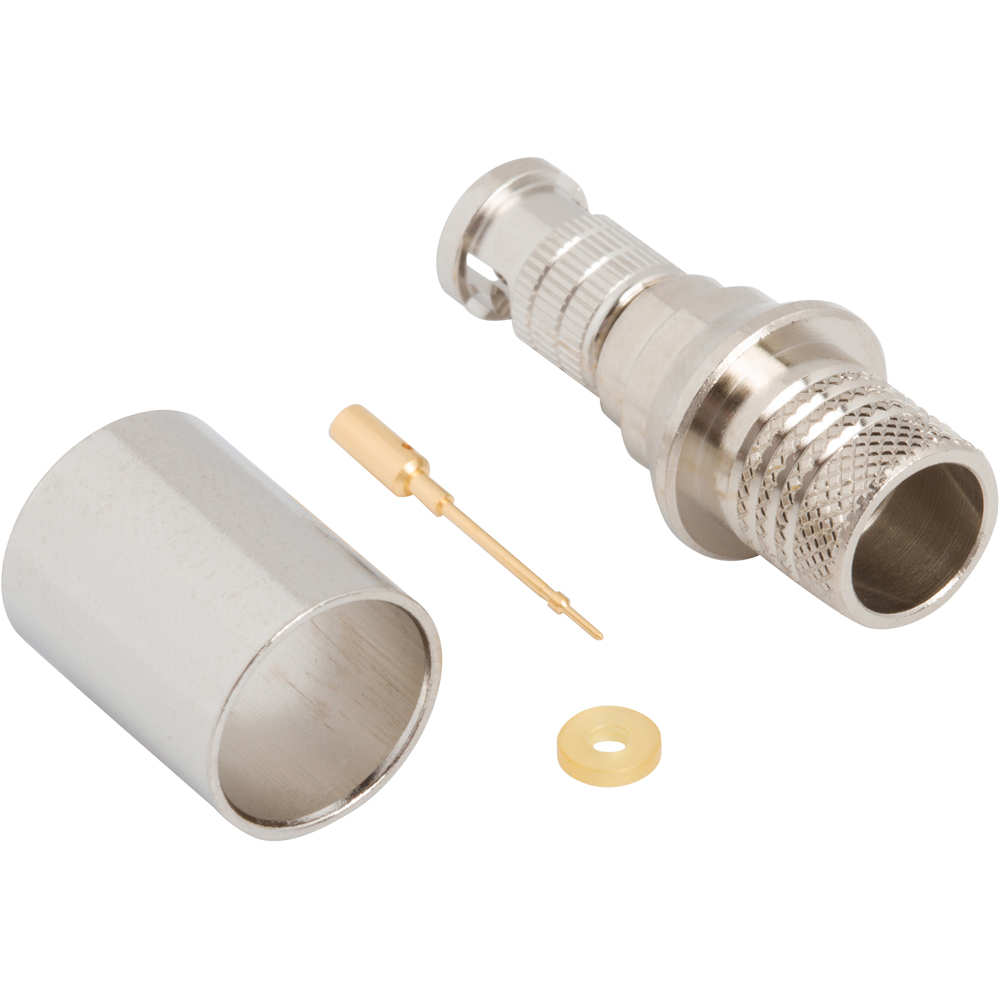

RF Connector HD-BNC Straight Crimp Plug Belden 4731P Belden 4731R 75 Ohm 12G Optimized
HD-BNC Connectors
034-1132-12G
$10.90
HD-BNC Straight Crimp Plug Belden 4731P Belden 4731R 75 Ohm 12G Optimized
| Weight | 0.01094 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | R1 |
| Cable Type | Belden 4731P, Belden 4731R |
| Impedance (Ohms) | 75 |
| Insulator Material | PTFE |
| IP Rating | Not Rated |
| Gender | Plug |
| Panel Mounting Feature | Not Applicable |
| Operating Level | Performance |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 18 |
| Temp (Max Degrees Celsius) | 85 |
| Temp (Min Degrees Celsius) | -30 |
| Non Magnetic | No |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Contact Termination | Crimp |
| Coupling Mechanism | Bayonet |
| Mating Cycles (Min) | 500 |
| Termination Style | Cable – Crimp |
