082-5376-RFX

$6.24

N-Type Straight Crimp Jack RG-58 RG-141 Times LMR-195 50 Ohm

Quantity	100 - 249	250 - 499	500
Price	$6.24	$6.12	$5.76

Summary
082-5376-RFX	$6.24
1x	$6.24

SKU: 082-5376-RFX Category: N-Type Connectors

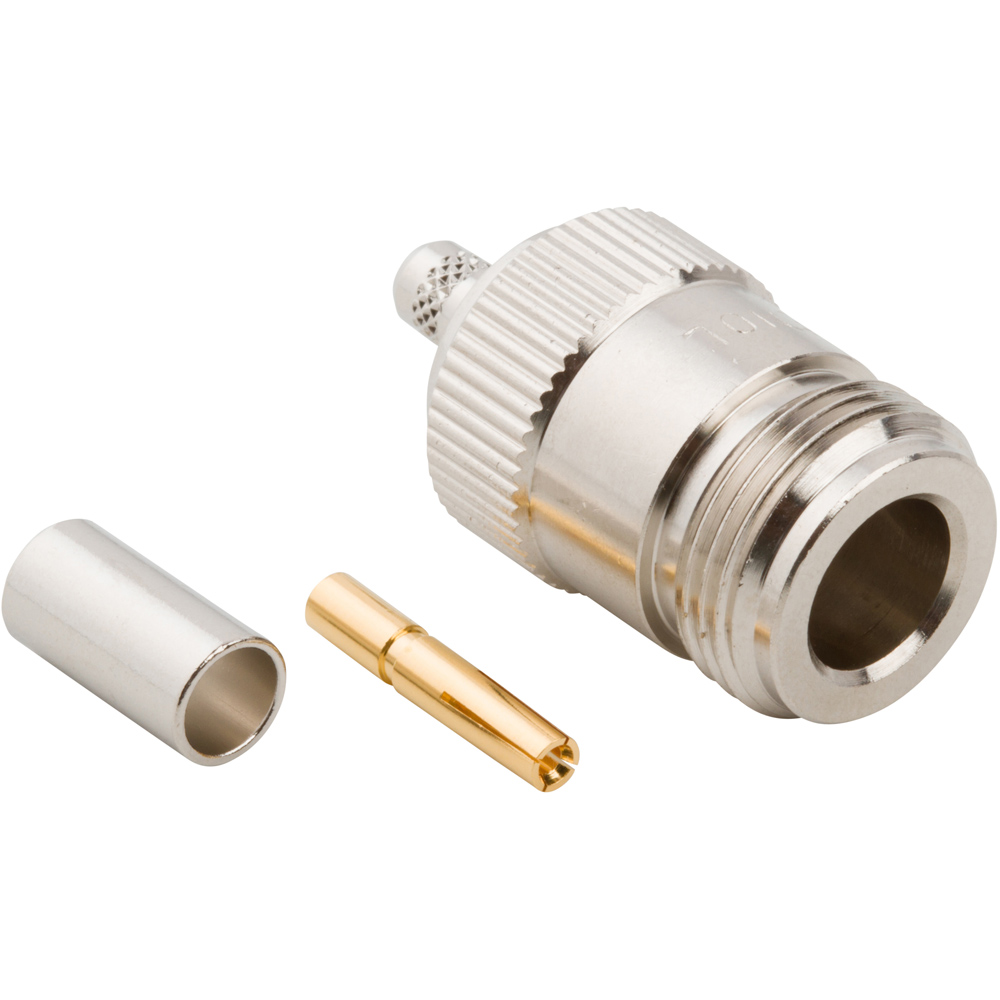

RF Connector N-Type Straight Crimp Jack RG-58 RG-141 Times LMR-195 50 Ohm

Manufacturer	Amphenol RF
Body Finish	Nickel
Body Material	Brass
Cable Group	C
Cable Type	Belden 7806A, Belden 8219, Belden 8240, Belden 8259, Belden 8262, Belden 9201, Belden 9203, Belden 9310, Belden 9311, RG-141, RG-58, Times LMR-195, Times LMR-200-LLPL
Impedance (Ohms)	50
Insulator Material	PTFE
IP Rating	Not Rated
Gender	Jack
Panel Mounting Feature	Not Applicable
Isolated	No
Low PIM	No
Frequency (Max GHz)	11
Temp (Max Degrees Celsius)	85
Temp (Min Degrees Celsius)	-40
Non Magnetic	No
Thread Direction	Standard
Contact Finish	Gold
Contact Material	Phosphor Bronze
Contact Termination	Crimp
Coupling Mechanism	Threaded
Mating Cycles (Min)	500
Termination Style	Cable – Crimp
Assembly Tool	CTL-3
