082-6099-RFX

$12.25

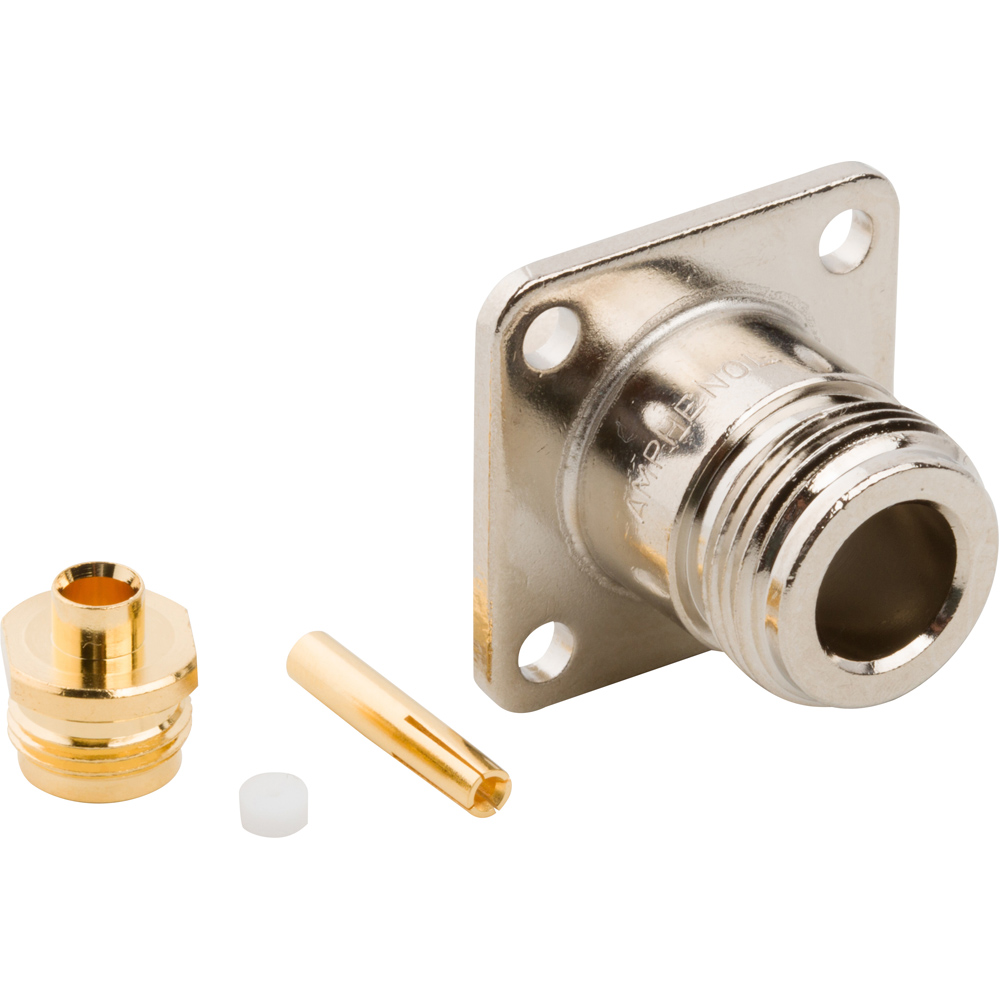

N-Type Straight Clamp Jack RG-402 0.141-inch Conformable Times Tflex 402 50 Ohm

Quantity	1 - 9	10 - 24	25 - 49	50 - 99	100 - 249	250 - 499	500 - 999	1000
Price	$12.25	$11.56	$10.65	$10.32	$9.73	$8.25	$7.29	$7.12

Summary
082-6099-RFX	$12.25
1x	$12.25

SKU: 082-6099-RFX Category: N-Type Connectors

RF Connector N-Type Straight Clamp Jack RG-402 0.141-inch Conformable Times Tflex 402 50 Ohm

Manufacturer	Amphenol RF
Body Finish	Nickel
Body Material	Brass
Cable Group	SR2
Cable Type	0.141-inch Conformable, 0.141-inch Semi-Rigid, Belden 1673A, RG-402, Times Tflex 402
Impedance (Ohms)	50
Insulator Material	PTFE
IP Rating	Not Rated
Gender	Jack
Panel Mounting Feature	4-Hole Flange
Isolated	No
Low PIM	No
Frequency (Max GHz)	11
Temp (Max Degrees Celsius)	85
Temp (Min Degrees Celsius)	-40
Non Magnetic	No
Thread Direction	Standard
Contact Finish	Gold
Contact Material	Phosphor Bronze
Contact Termination	Solder
Coupling Mechanism	Threaded
Mating Cycles (Min)	500
Termination Style	Cable – Clamp
