082-6162

$12.05

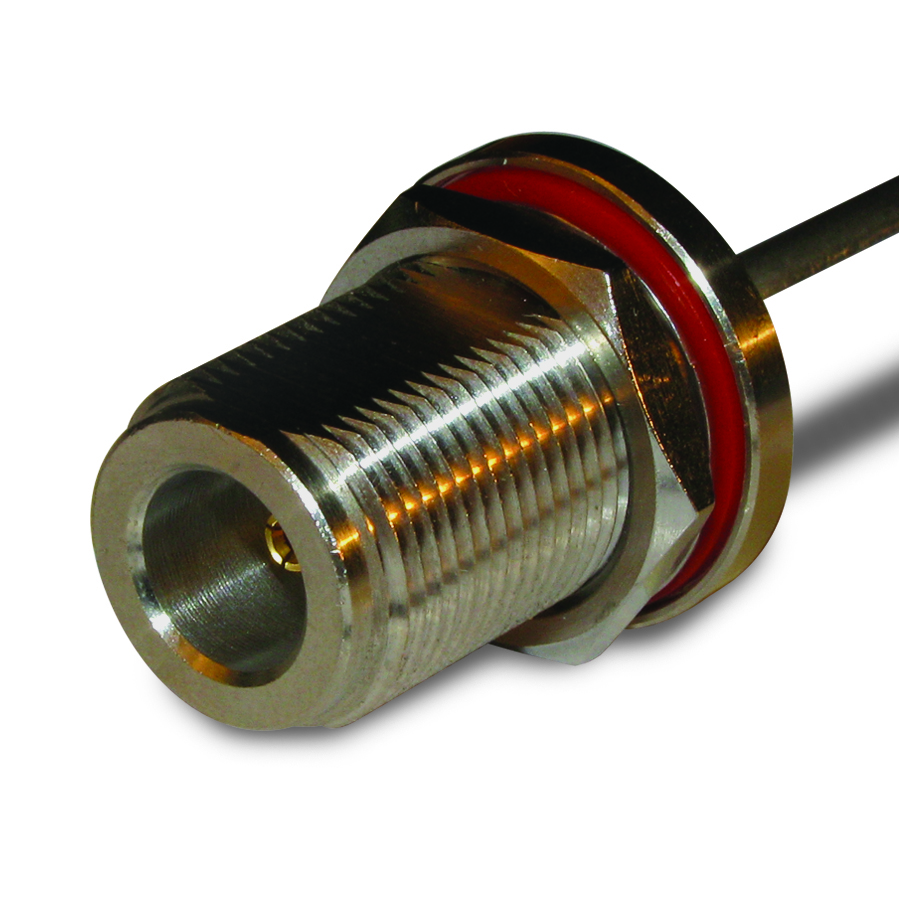

N-Type Straight Clamp Jack RG-401 0.250-inch Conformable Times Tflex 401 Bulkhead 50 Ohm

Quantity	100 - 249	250 - 499	500
Price	$12.05	$11.81	$11.16

Summary
082-6162	$12.05
1x	$12.05

SKU: 082-6162 Category: N-Type Connectors

RF Connector N-Type Straight Clamp Jack RG-401 0.250-inch Conformable Times Tflex 401 Bulkhead 50 Ohm

Manufacturer	Amphenol RF
Body Finish	Nickel
Body Material	Brass
Cable Group	SR3
Cable Type	0.250-inch Conformable, 0.250-inch Semi-Rigid, RG-401, Times Tflex 401
Impedance (Ohms)	50
Insulator Material	PTFE
IP Rating	Not Rated
Gender	Jack
Panel Mounting Feature	Bulkhead – Rear Mount
Isolated	No
Low PIM	No
Frequency (Max GHz)	11
Temp (Max Degrees Celsius)	85
Temp (Min Degrees Celsius)	-40
Non Magnetic	No
Thread Direction	Standard
Contact Finish	Gold
Contact Material	Phosphor Bronze
Contact Termination	Solder
Coupling Mechanism	Threaded
Mating Cycles (Min)	500
Termination Style	Cable – Clamp
