082-62

$29.19

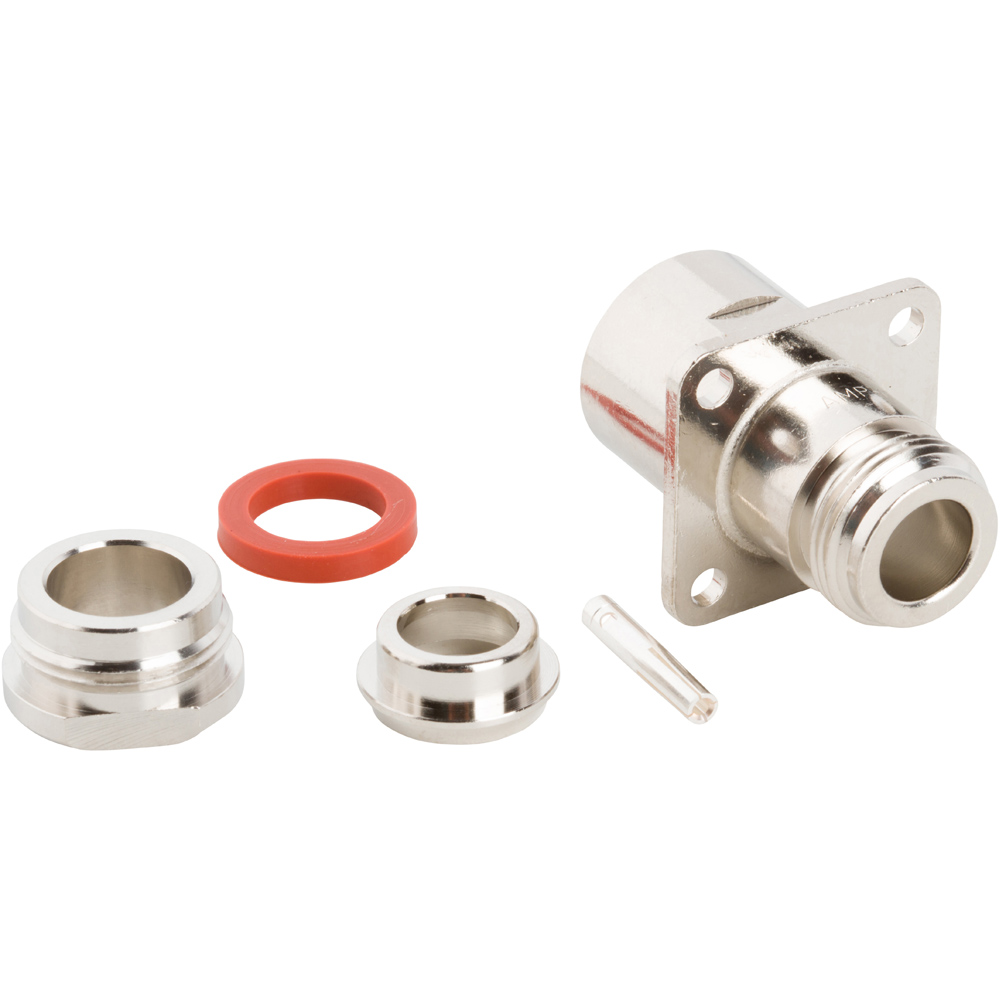

UG-22B/U N-Type Panel Mount 4-Hole Flange Jack RG-8X Times LMR-240 Optimized 50 Ohm

Quantity	1 - 9	10 - 24	25 - 49	50
Price	$29.19	$28.53	$26.80	$23.21

Summary
082-62	$29.19
1x	$29.19

SKU: 082-62 Category: N-Type Connectors

UG-22B/U N-Type Panel Mount 4-Hole Flange Jack RG-8X Times LMR-240 Optimized 50 Ohm

Weight	0.058059 kg
Manufacturer	Amphenol RF
Body Finish	Nickel
Body Material	Brass
Cable Group	X
Cable Type	Belden 9258, RG-8X, Times LMR-240, Times LMR-240 UltraFlex
Impedance (Ohms)	50
Insulator Material	PTFE
IP Rating	Not Rated
Gender	Jack
Panel Mounting Feature	4-Hole Flange
Isolated	No
Low PIM	No
Frequency (Max GHz)	11
Temp (Max Degrees Celsius)	165
Temp (Min Degrees Celsius)	-65
Non Magnetic	No
Thread Direction	Standard
Contact Finish	Silver
Contact Material	Beryllium Copper
Contact Termination	Solder
Coupling Mechanism	Threaded
Mating Cycles (Min)	500
Termination Style	Cable – Clamp
