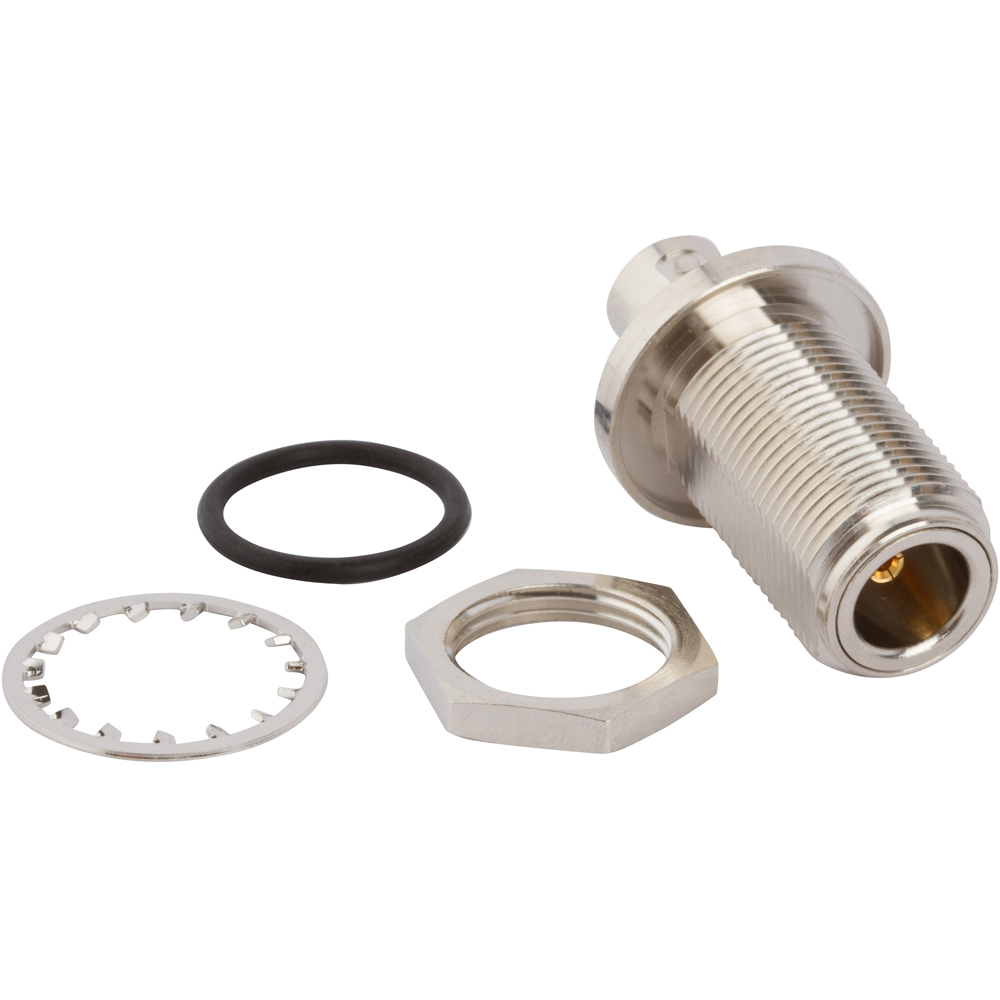

N-Type Jack to BNC Jack Adapter 50 Ohm Straight Bulkhead IP67 ARC
BNC to N-Type Adapters, N-Type to BNC Adapters
082-6532
$25.37
N-Type Jack to BNC Jack Adapter 50 Ohm Straight Bulkhead IP67 ARC
| Weight | 0.0387 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Nickel |
| Body Material | Brass |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| Panel Mounting Feature | Bulkhead |
| Operating Level | Performance |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 4 |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Adapter Side 1 Series | BNC |
| Adapter Side 1 Style | Jack |
| Adapter Side 2 Series | N-Type |
| Adapter Side 2 Style | Jack |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
