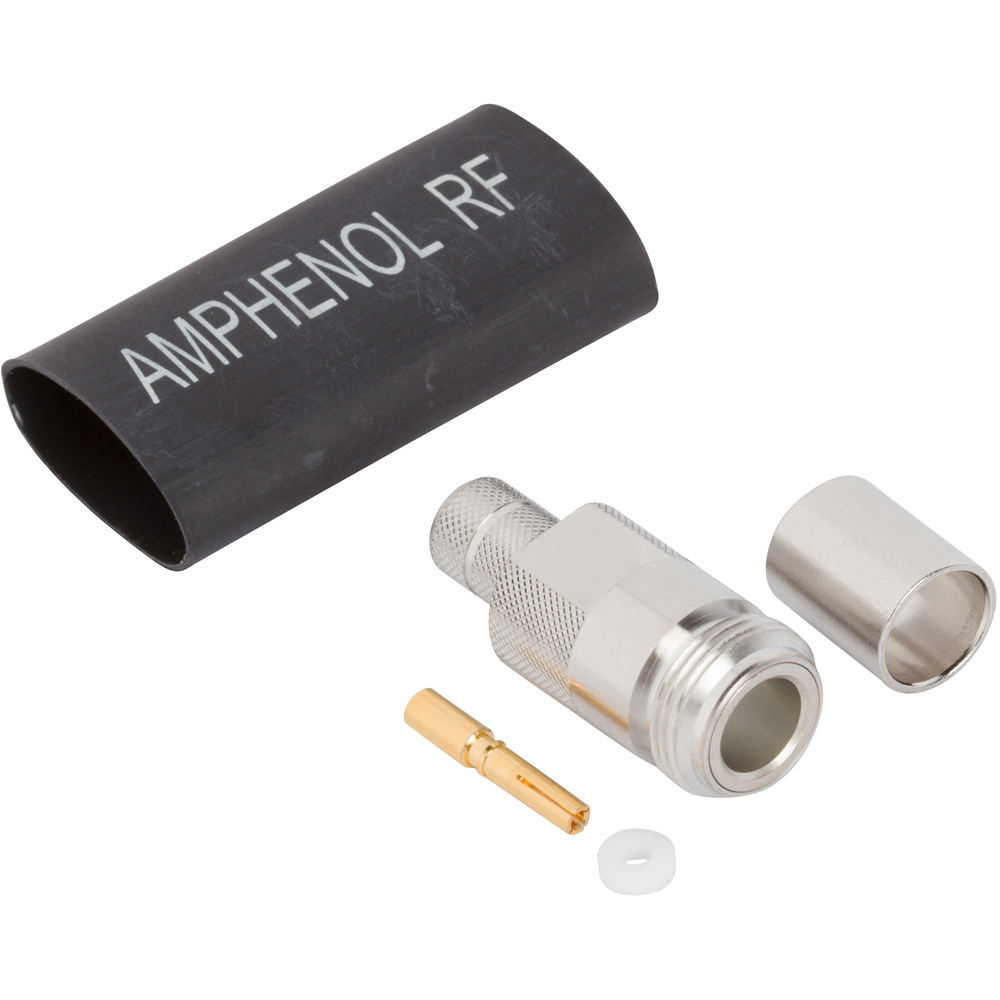

RF Connector N-Type Straight Crimp Jack Times LMR-400 Optimized Belden 9913 50 Ohm
N-Type Connectors
082-6644
$19.53
N-Type Straight Crimp Jack Times LMR-400 Optimized Belden 9913 50 Ohm
| Weight | 0.03668 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | White Bronze |
| Body Material | Brass |
| Cable Group | LL06 |
| Cable Type | Times LMR-400 Optimized, Times LMR-400 UltraFlex Optimized |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| IP Rating | Not Rated |
| Gender | Jack |
| Panel Mounting Feature | Not Applicable |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 6 |
| Temp (Max Degrees Celsius) | 85 |
| Temp (Min Degrees Celsius) | -55 |
| Non Magnetic | No |
| Thread Direction | Standard |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Contact Termination | Solder |
| Coupling Mechanism | Threaded |
| Mating Cycles (Min) | 500 |
| Termination Style | Cable – Crimp |
