082-6684

$48.28

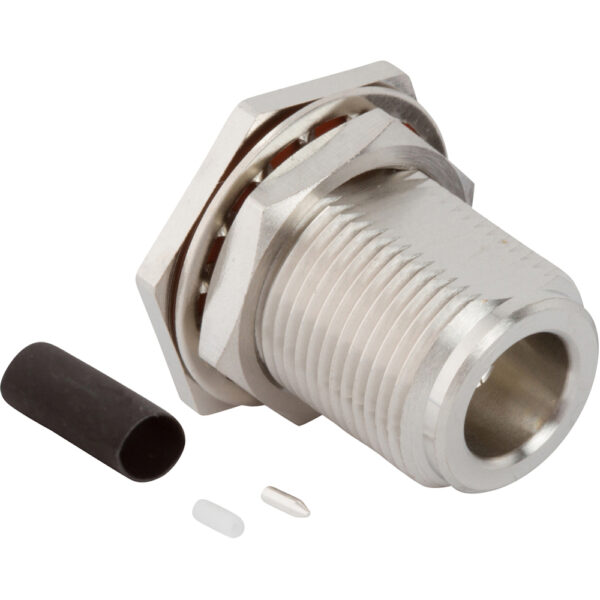

N-Type Straight Solder Jack Bulkhead 0.085-inch Conformable 50 Ohm High Frequency

Quantity	1 - 24	25 - 99	100 - 249	250 - 499	500
Price	$48.28	$44.56	$41.38	$37.57	$34.30

Summary
082-6684	$48.28
1x	$48.28

SKU: 082-6684 Category: N-Type Connectors

RF Connector N-Type Straight Solder Jack Bulkhead RG-405 0.088 50 Ohm

Weight	0.03137 kg
Manufacturer	Amphenol RF
Body Finish	White Bronze
Body Material	Brass
Cable Group	SR1
Cable Type	0.085-inch Conformable, 0.085-inch Semi-Rigid, 0.086-inch Conformable, 0.086-inch Semi-Rigid, Belden 1671A, RG-405, Times Tflex 405
Impedance (Ohms)	50
Insulator Material	PTFE
IP Rating	Not Rated
Gender	Jack
Panel Mounting Feature	Bulkhead – Rear Mount
Isolated	No
Low PIM	No
Frequency (Max GHz)	18
Non Magnetic	No
Thread Direction	Standard
Contact Finish	Silver
Contact Material	Beryllium Copper
Orientation	Straight
Contact Termination	Solder
Mating Cycles (Min)	500
Termination Style	Cable – Solder
