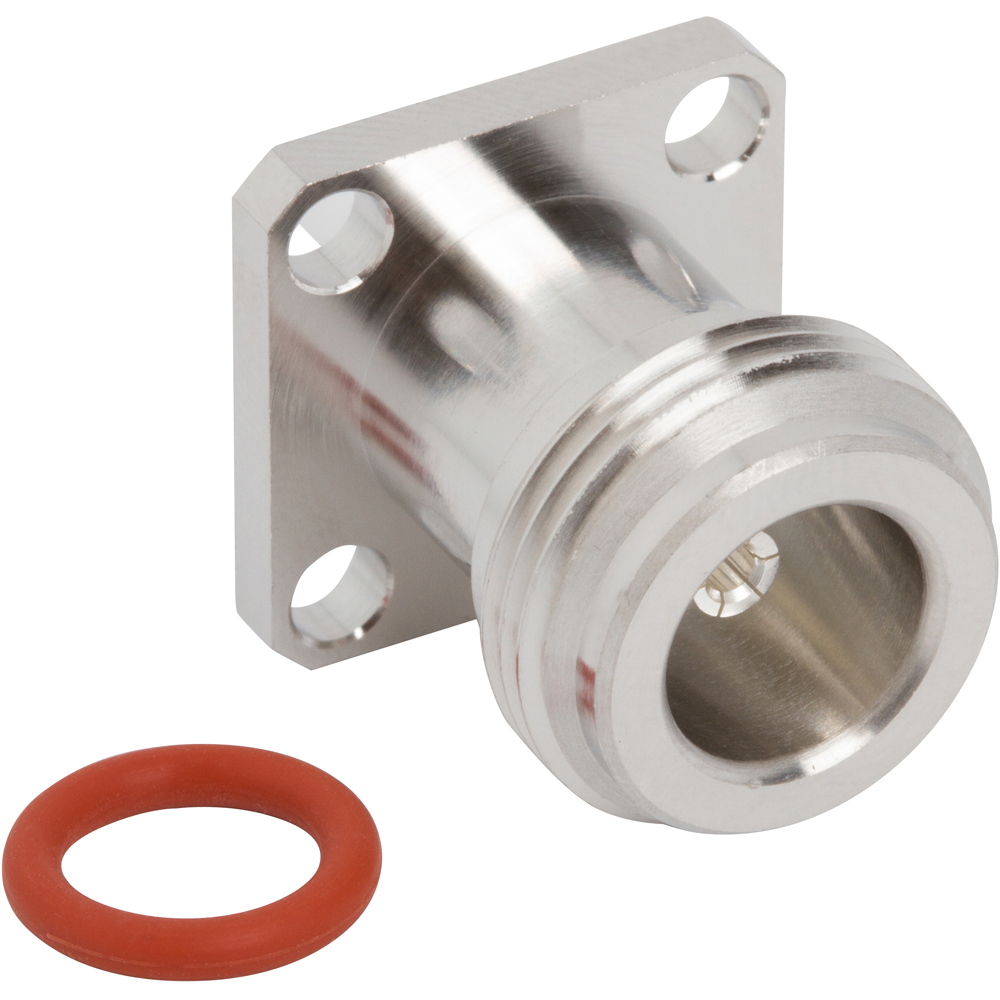

RF Connector N-Type Panel Mount Jack 4 Hole Round Post 50 Ohm 0.433 Post 0.358 PTFE
N-Type Connectors
082-6712-433358
$30.81
N-Type Panel Mount Jack 4 Hole Round Post 50 Ohm 0.433 Post 0.358 PTFE
| Weight | 0.01735 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | White Bronze |
| Body Material | Brass |
| Cable Group | Not Applicable |
| Cable Type | Not Applicable |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| IP Rating | Not Rated |
| Gender | Jack |
| Panel Mounting Feature | 4-Hole Flange |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 18 |
| Non Magnetic | No |
| Thread Direction | Standard |
| Contact Finish | Silver |
| Contact Material | Beryllium Copper |
| Orientation | Straight |
| Contact Termination | Solder |
| Mating Cycles (Min) | 500 |
| Termination Style | Cable – Solder |
| Post Length | 0.433 Inches (11.00 mm) |
| Extended Dielectric Length | 0.358 Inches (9.09 mm) |
