082-804

$77.08

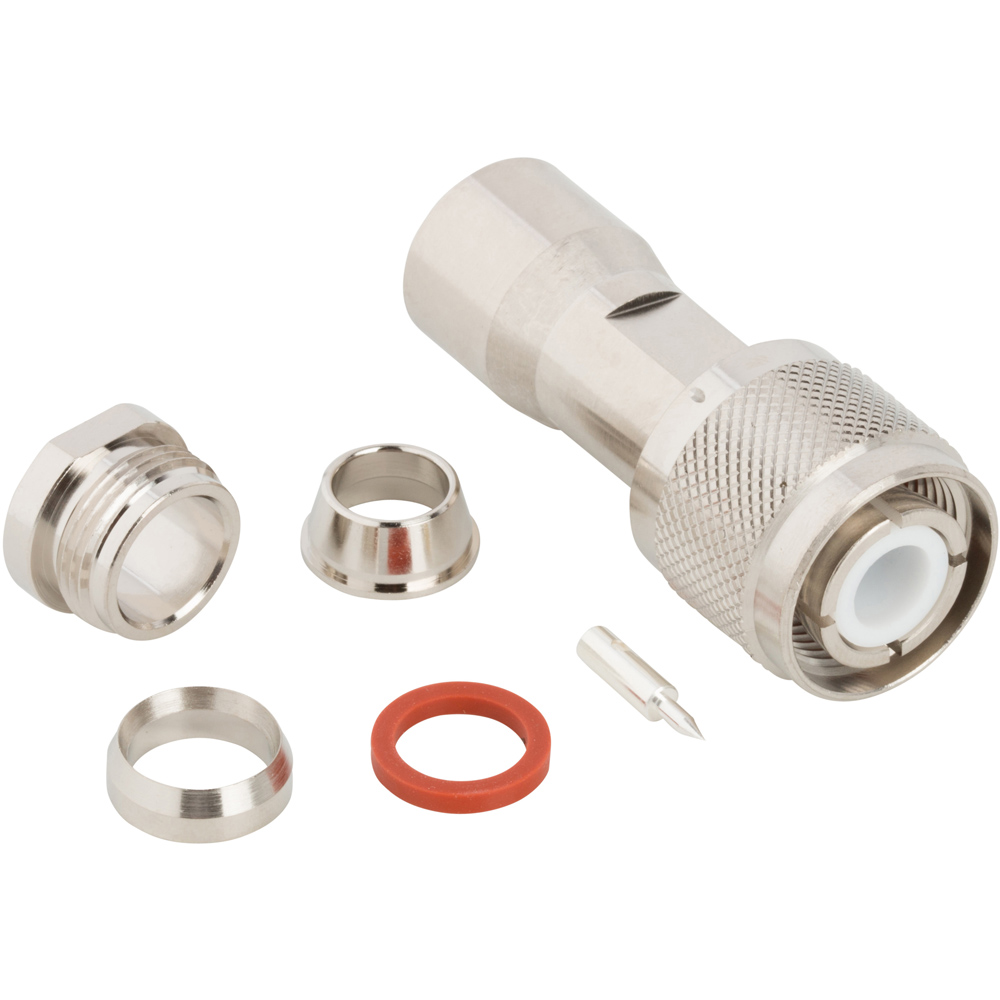

UG-59B/U HN-Type Straight Clamp Plug RG-8 RG-213 RG-225 50 Ohm

Quantity	1 - 9	10 - 24	25 - 49	50 - 99	100 - 249	250 - 499	500 - 999	1000
Price	$77.08	$71.32	$69.22	$67.23	$62.44	$52.45	$48.36	$43.72

Summary
082-804	$77.08
1x	$77.08

SKU: 082-804 Category: HN-Type Connectors

UG-59B/U HN-Type Straight Clamp Plug RG-8 RG-213 RG-225 50 Ohm

Weight	0.072121 kg
Manufacturer	Amphenol RF
Body Finish	Nickel
Body Material	Brass
Cable Group	E
Cable Type	Belden 7733A, Belden 8242, Belden 8267, Belden 8268, Belden 89880, Belden 9251, Belden 9880, RG-213, RG-225, RG-8, Times AA-4478
Impedance (Ohms)	50
Insulator Material	PTFE
IP Rating	Not Rated
Gender	Plug
Panel Mounting Feature	Not Applicable
Isolated	No
Low PIM	No
Frequency (Max GHz)	4
Temp (Max Degrees Celsius)	165
Temp (Min Degrees Celsius)	-65
Non Magnetic	No
Thread Direction	Standard
Contact Finish	Silver
Contact Material	Brass
Contact Termination	Solder
Coupling Mechanism	Threaded
Mating Cycles (Min)	500
Termination Style	Cable – Clamp
