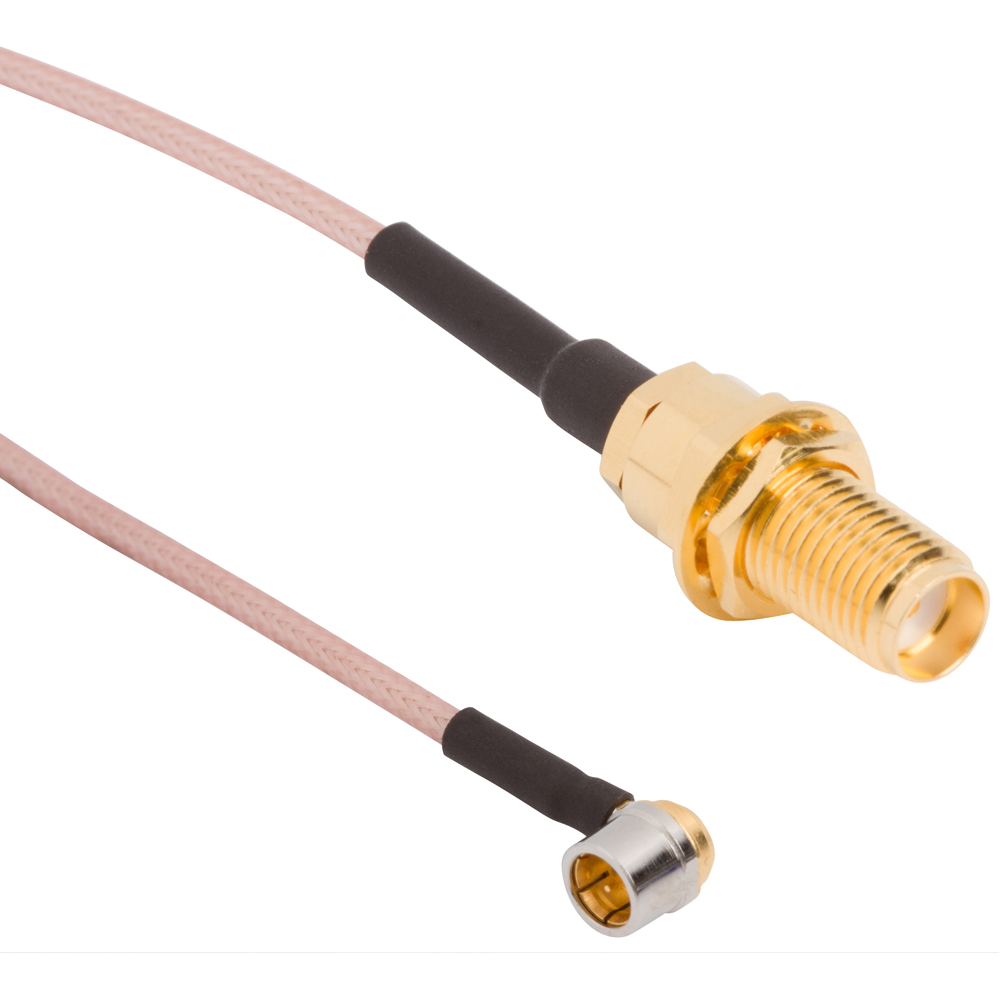

RF Cable Assembly Probe Right Angle Plug to SMA Straight Bulkhead Jack RG-178 50 Ohm 300 mm (11.81 Inches)
Probe to SMA Cable Assemblies, SMA to Probe Cable Assemblies
095-668-45069-1
$23.34
Probe Right Angle Plug to SMA Straight Bulkhead Jack RG-178 50 Ohm 300 mm (11.81 Inches)
| Weight | 0.00833 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Cable Group | A |
| Impedance (Ohms) | 50 |
| IP Rating | Not Rated |
| Panel Mounting Feature | Bulkhead – Rear Mount |
| Operating Level | Performance |
| Isolated | No |
| Low PIM | No |
| Non Magnetic | No |
| Connector 1 Series | Probe |
| Connector 1 Style | R/A Plug |
| Connector 1 Part Number | N/A |
| Connector 2 Series | SMA |
| Connector 2 Style | Str Blkhd Jack |
| Connector 2 Part Number | N/A |
| Cable Type | RG-178 |
| Cable Assembly Length | 11.81 in (300 mm) |
