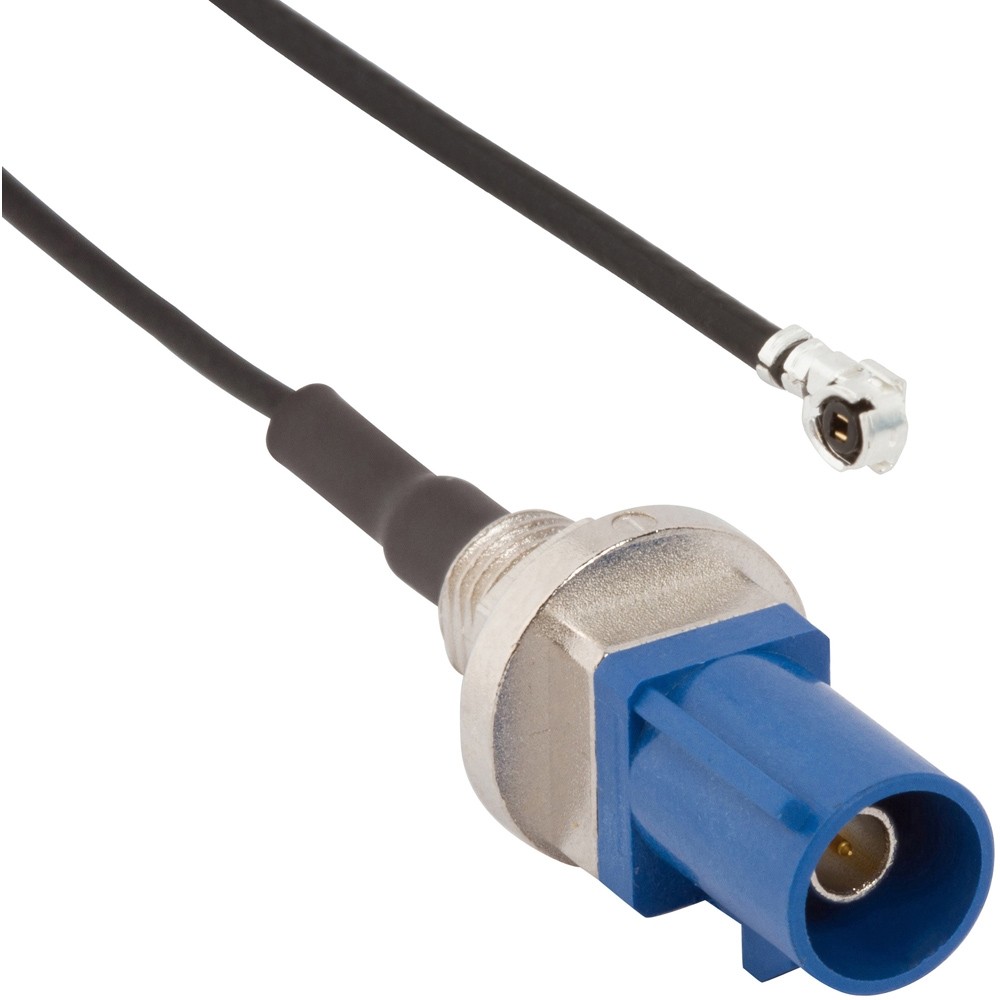

RF Cable Assembly AMC Right Angle Plug to FAKRA Straight Bulkhead Plug IP67 1.37 mm 50 Ohm 50 Millimeter C Key Code (1.96 Inches)
AMC to FAKRA Cable Assemblies, FAKRA to AMC Cable Assemblies
095-820-109-05C
$15.29
AMC Right Angle Plug to FAKRA Straight Bulkhead Plug IP67 1.37 mm 50 Ohm 50 Millimeter C Key Code (1.96 Inches)
| Weight | 0.0083 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Cable Group | P4 |
| Impedance (Ohms) | 50 |
| Panel Mounting Feature | Not Applicable |
| Isolated | No |
| Low PIM | No |
| Non Magnetic | No |
| Connector 1 Series | AMC |
| Connector 1 Style | R/A Plug |
| Connector 1 Part Number | AMC Cable Plug |
| Connector 2 Series | FAKRA |
| Connector 2 Style | Str Blkhd Plug IP67 |
| Cable Type | 1.37 mm Micro-cable |
| Cable Assembly Length | 1.97 in (50 mm) |
