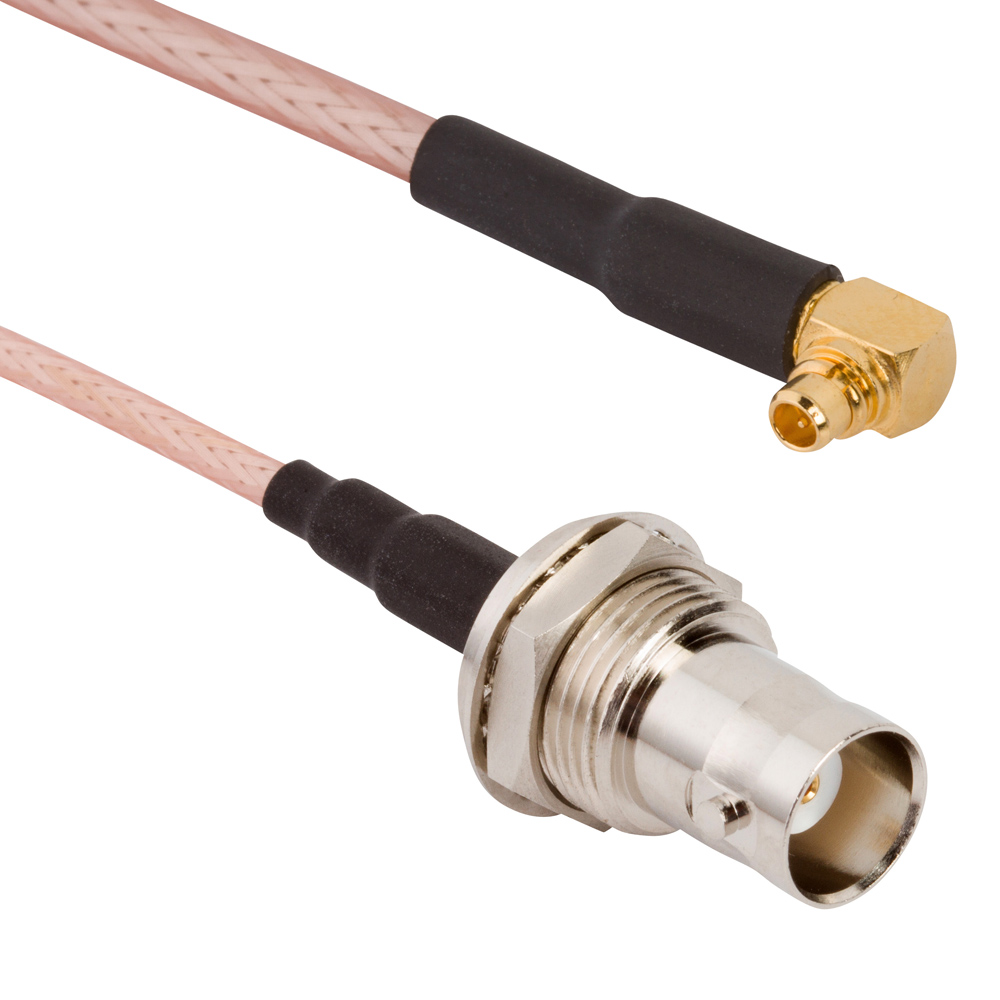

RF Cable Assembly BNC Straight Bulkhead Jack to MMCX Right Angle Plug RG-316 50 Ohm 12 inches (305 mm)
BNC to MMCX Cable Assemblies, MMCX to BNC Cable Assemblies
095-850-207-012
$22.98
BNC Straight Bulkhead Jack to MMCX Right Angle Plug RG-316 50 Ohm 12 inches (305 mm)
| Weight | 0.01953 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Cable Group | B |
| Impedance (Ohms) | 50 |
| IP Rating | Not Rated |
| Panel Mounting Feature | Not Applicable |
| Isolated | No |
| Low PIM | No |
| Non Magnetic | No |
| Connector 1 Series | BNC |
| Connector 1 Style | Str Blkhd Jack |
| Connector 1 Part Number | 112234-11 |
| Connector 2 Series | MMCX |
| Connector 2 Style | R/A Plug |
| Connector 2 Part Number | 908-43300 |
| Cable Type | RG-316 |
| Cable Assembly Length | 12.00 in (305 mm) |
