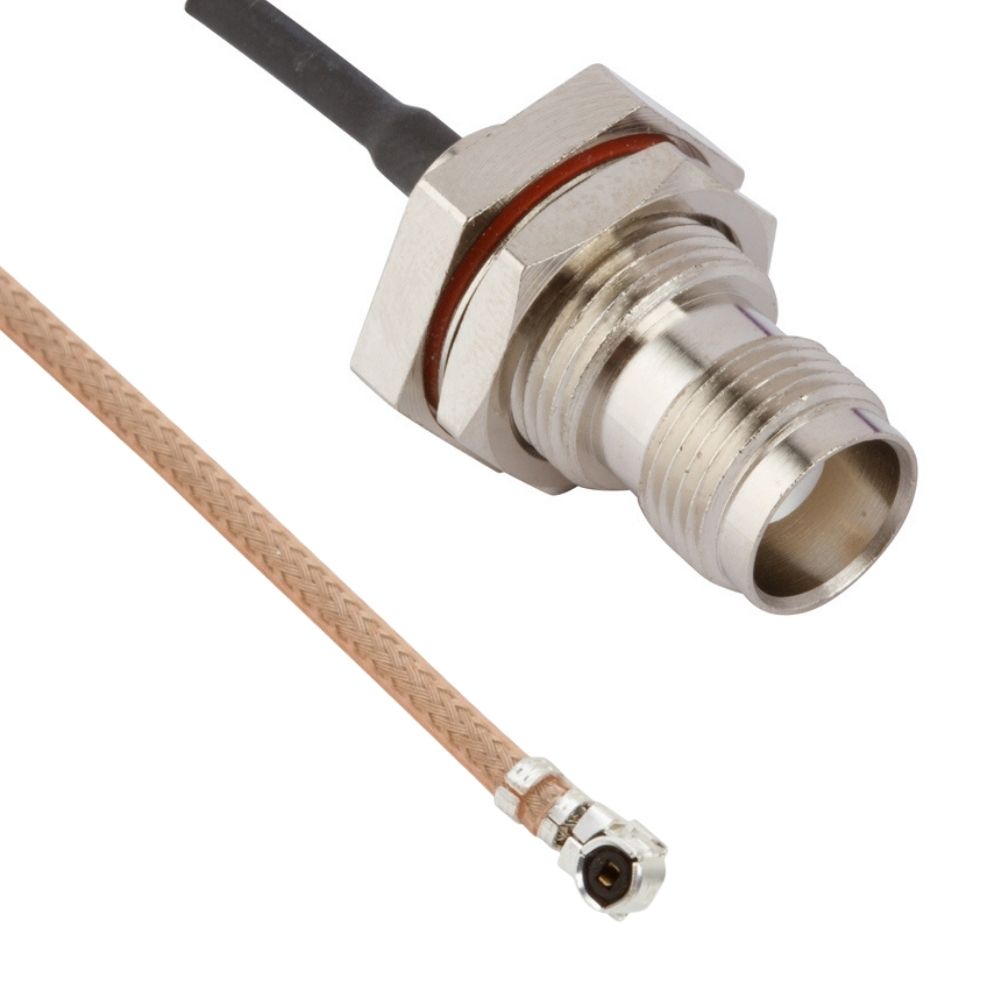

RF Cable Assembly AMC Right Angle Plug to TNC Straight Bulkhead Jack RG-178 50 Ohm 100 mm (3.93 Inches)
AMC to TNC Cable Assemblies, TNC to AMC Cable Assemblies
095-850-283-100
$13.30
AMC Right Angle Plug to TNC Straight Bulkhead Jack RG-178 50 Ohm 100 mm (3.93 Inches)
| Manufacturer | Amphenol RF |
|---|---|
| Impedance (Ohms) | 50 |
| Low PIM | No |
| Frequency (Max GHz) | 6 |
| Temp (Max Degrees Celsius) | 90 |
| Temp (Min Degrees Celsius) | -40 |
| Connector 1 Series | AMC |
| Connector 1 Style | R/A Plug |
| Connector 1 Part Number | AMC Cable Plug |
| Connector 2 Series | TNC |
| Connector 2 Style | Str Blkhd Jack |
| Connector 2 Part Number | 122370 |
| Cable Type | RG-178 |
| Cable Assembly Length | 3.94 in (100 mm) |
