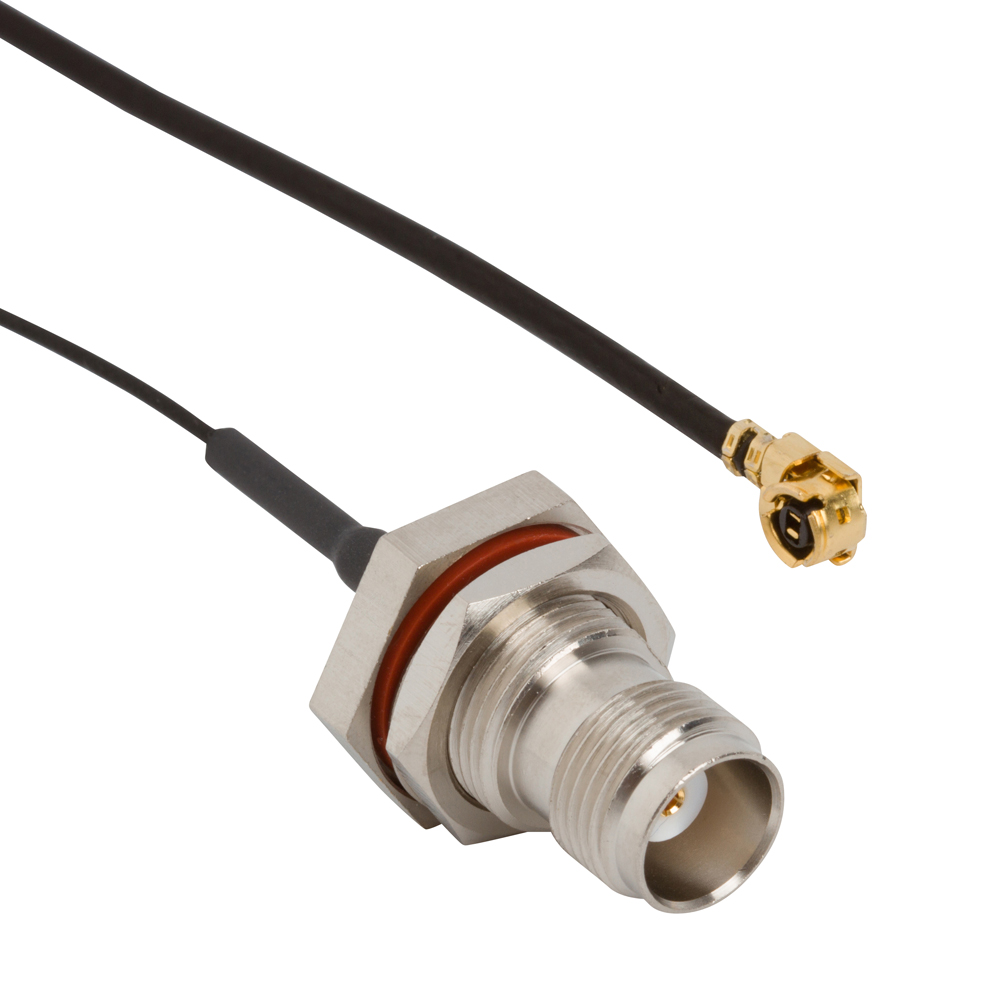

RF Cable Assembly AMC4 Right Angle Plug to TNC Straight Bulkhead Jack IP67 1.13 mm 50 Ohm 200 mm (7.87 Inches)
AMC4 to TNC Cable Assemblies, TNC to AMC4 Cable Assemblies
095-850-286-200
$16.94
AMC4 Right Angle Plug to TNC Straight Bulkhead Jack IP67 1.13 mm 50 Ohm 200 mm (7.87 Inches)
| Weight | 0.02865 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Impedance (Ohms) | 50 |
| Low PIM | No |
| Frequency (Max GHz) | 6 |
| Temp (Max Degrees Celsius) | 90 |
| Temp (Min Degrees Celsius) | -40 |
| Connector 1 Series | AMC4 |
| Connector 1 Style | R/A Plug |
| Connector 1 Part Number | AMC4 Cable Plug |
| Connector 2 Series | TNC |
| Connector 2 Style | Str Blkhd Jack IP67 |
| Connector 2 Part Number | 122452 |
| Cable Type | 1.13 mm Micro-cable |
| Cable Assembly Length | 7.87 in (200 mm) |
