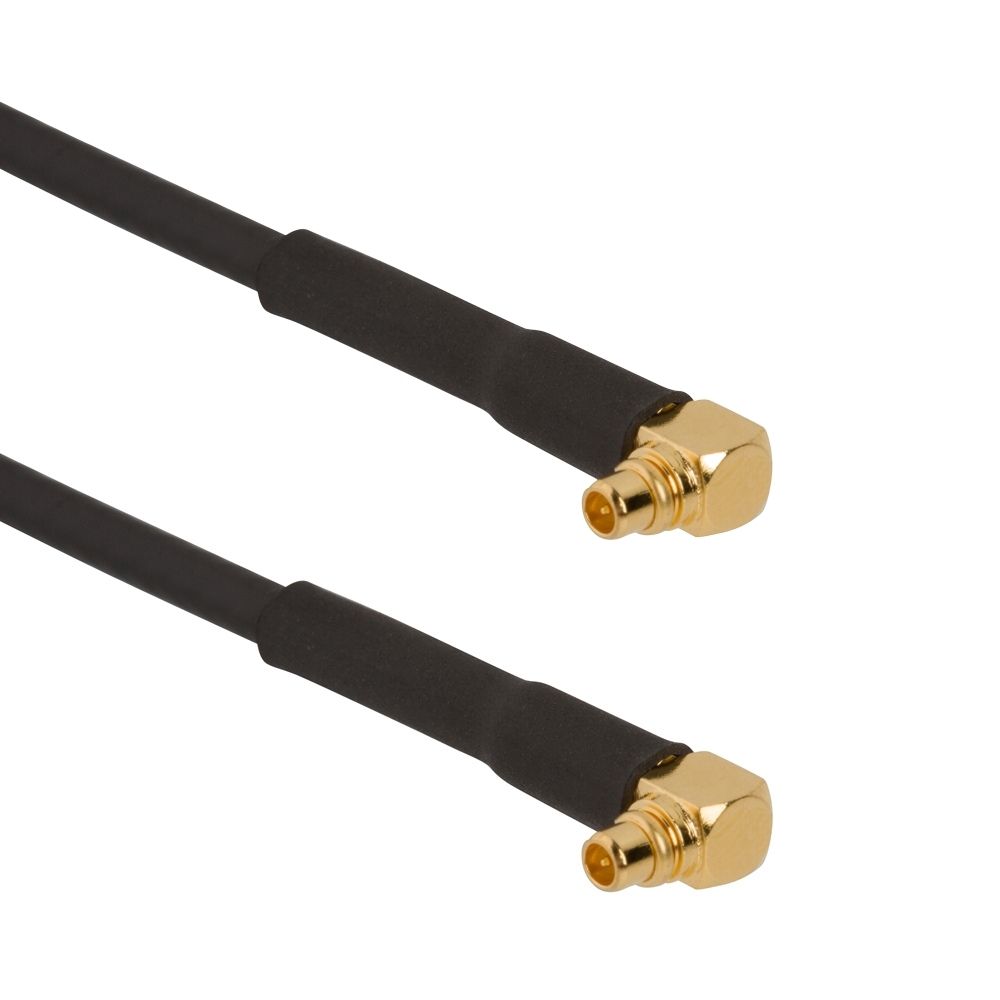

RF Cable Assembly MMCX Right Angle Plug to MMCX Right Angle Plug RG-174 48 inches (1219 mm)
MMCX to MMCX Cable Assemblies
095-900-550-048
$13.66
MMCX Right Angle Plug to MMCX Right Angle Plug RG-174 48 inches (1219 mm)
| Weight | 0.01871 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Impedance (Ohms) | 50 |
| Low PIM | No |
| Frequency (Max GHz) | 1 |
| Temp (Max Degrees Celsius) | 85 |
| Temp (Min Degrees Celsius) | -40 |
| Connector 1 Series | MMCX |
| Connector 1 Style | R/A Plug |
| Connector 1 Part Number | 262103 |
| Connector 2 Series | MMCX |
| Connector 2 Style | R/A Plug |
| Connector 2 Part Number | 262103 |
| Cable Type | RG-174 |
| Cable Assembly Length | 48.00 in (1219 mm) |
