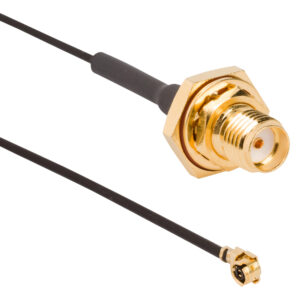

RF Cable Assembly AMC Right Angle Plug to SMA Right Angle Jack 1.13 mm 50 Ohm 150 mm ( 5.9 Inches)
AMC to SMA Cable Assemblies, SMA to AMC Cable Assemblies
095-902-492-150
$17.37
AMC Right Angle Plug to SMA Right Angle Jack 1.13 mm 50 Ohm 150 mm ( 5.9 Inches)
| Weight | 0.00498 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Cable Group | P2 |
| Impedance (Ohms) | 50 |
| IP Rating | Not Rated |
| Panel Mounting Feature | Not Applicable |
| Isolated | No |
| Low PIM | No |
| Non Magnetic | No |
| Connector 1 Series | AMC |
| Connector 1 Style | R/A Plug |
| Connector 1 Part Number | AMC Cable Plug |
| Connector 2 Series | SMA |
| Connector 2 Style | R/A Jack |
| Connector 2 Part Number | 901-40106 |
| Cable Type | 1.13 mm Micro-cable |
| Cable Assembly Length | 5.91 in (150 mm) |
