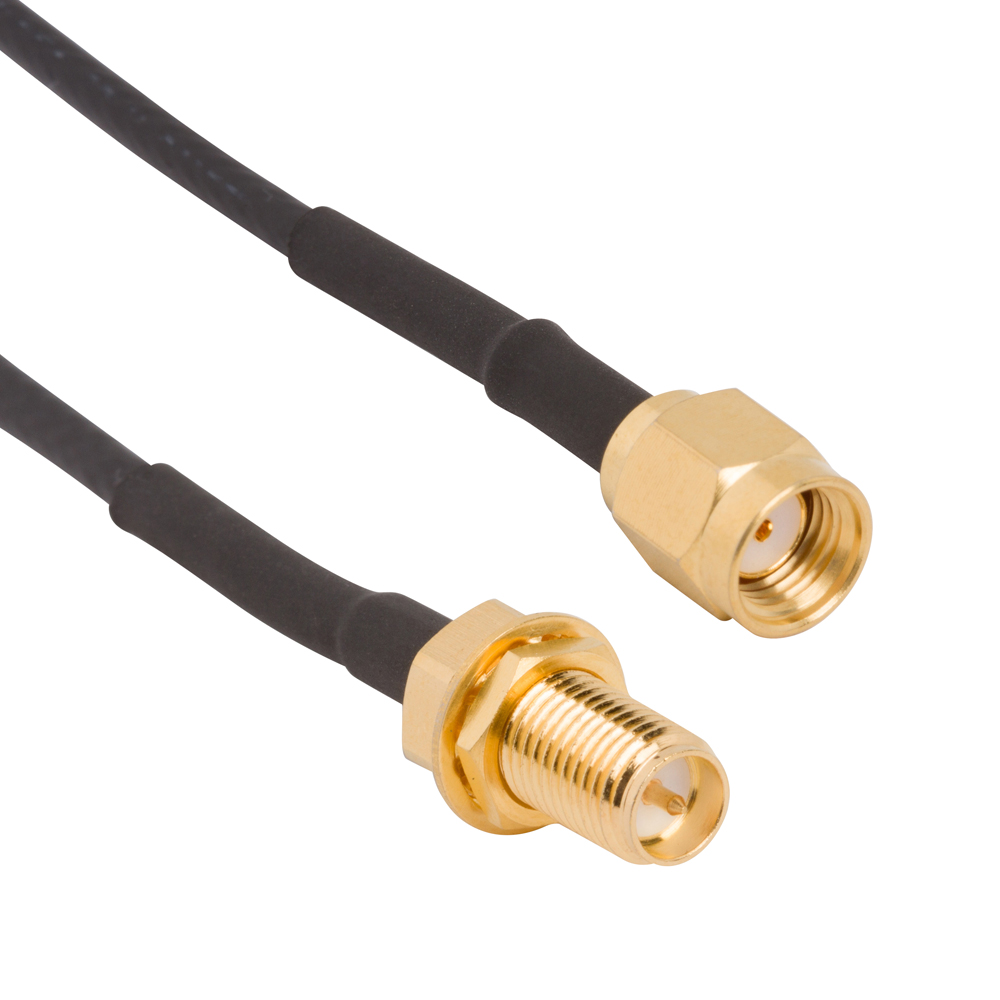

RF Cable Assembly RP-SMA Straight Plug to RP-SMA Straight Jack RG-174 50 Ohm 18 inchesch (457 mm)
RP-SMA to RP-SMA Cable Assemblies
095-902-538-018
$17.37
RP-SMA Straight Plug to RP-SMA Straight Jack RG-174 50 Ohm 18 inchesch (457 mm)
| Weight | 0.0122 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Impedance (Ohms) | 50 |
| Low PIM | No |
| Frequency (Max GHz) | 6 |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Connector 1 Series | RP-SMA |
| Connector 1 Style | Str Plug |
| Connector 1 Part Number | 132114RP |
| Connector 2 Series | RP-SMA |
| Connector 2 Style | Str Jack |
| Connector 2 Part Number | 132117RP |
| Cable Type | RG-174 |
| Cable Assembly Length | 18.00 in (457 mm) |
