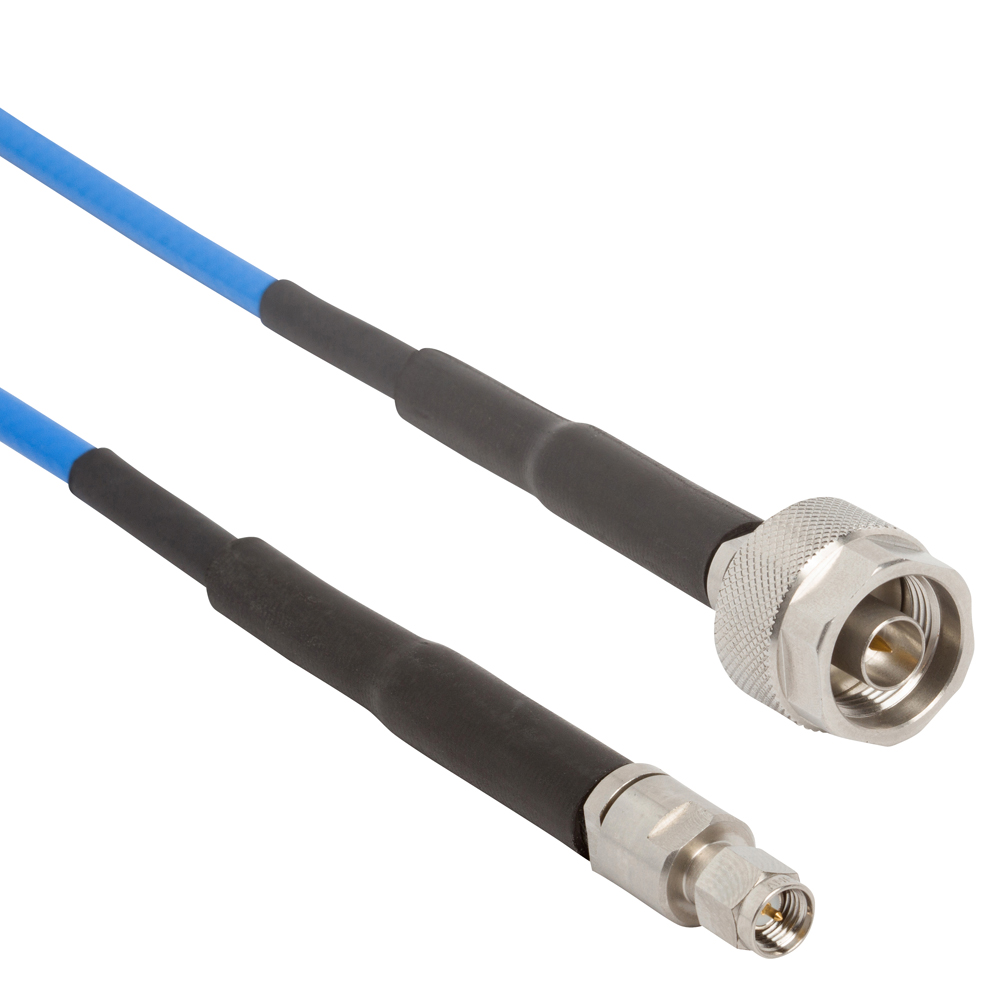

RF Cable Assembly N-Type Straight Plug to SMA Straight Plug AA-60091 50 Ohm 36 inches (914 mm)
N-Type to SMA Cable Assemblies, SMA to N-Type Cable Assemblies
095-909-168-036
$184.96
N-Type Straight Plug to SMA Straight Plug AA-60091 50 Ohm 36 inches (914 mm)
| Manufacturer | Amphenol RF |
|---|---|
| Cable Group | LL10 |
| Impedance (Ohms) | 50 |
| IP Rating | Not Rated |
| Panel Mounting Feature | Not Applicable |
| Insertion Loss (Max) | 1.84 |
| Isolated | No |
| Low PIM | No |
| Non Magnetic | No |
| Connector 1 Series | N-Type |
| Connector 1 Style | Str Plug |
| Connector 1 Part Number | 082-6635 |
| Connector 2 Series | SMA |
| Connector 2 Style | Str Plug |
| Connector 2 Part Number | 901-10551 |
| Cable Type | Times AA-60091 |
| Cable Assembly Length | 36.00 in (914 mm) |
